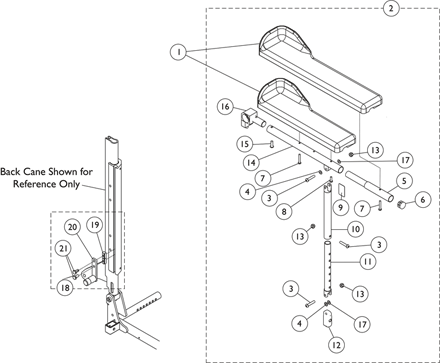

Arms - 2GR & 2GTR
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1082911 | Pad, Arm w/ Elbow Stop, Desk Length, Urethane, Black - Left (13" L x 3" W) | 1 | 1 |
$32.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1 | 1090190 | Kit, Arm Pad w/ Screws and Elbow Stop, Desk Length, Urethane, Black (13" L x 3" W) (Pair) | 2 | 1 |
$44.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1 | 1082912 | Pad, Arm w/ Elbow Stop, Full Length, Urethane, Black - Right (17" L x 3" W) | 1 | 1 |
$32.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1 | 1082913 | Pad, Arm w/ Elbow Stop, Full Length, Urethane, Black - Left (17" L x 3" W) | 1 | 1 |
$32.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1 | 1090191 | Kit, Arm Pad w/ Screws and Elbow Stop, Full Length, Urethane, Black (17" L x 3" W) (Pair) | 2 | 1 |
$48.00 |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 1086992 | Arm Assembly w/o Arm Pad, Desk Length, Black - Right | 1 | 1 |
$289.00 |
A ,H |
Create/add to WishlistCreate/add to Wishlist |
2 | 1086993 | Arm Assembly w/o Arm Pad, Desk Length, Black - Left | 1 | 1 |
$289.00 |
A ,H |
Create/add to WishlistCreate/add to Wishlist |
2 | 1087012 | Arm Assembly w/o Arm Pad, Full Length, Black - Right | 1 | 1 |
$323.00 |
B ,H |
Create/add to WishlistCreate/add to Wishlist |
2 | 1087013 | Arm Assembly w/o Arm Pad, Full Length, Black - Left | 1 | 1 |
$323.00 |
B ,H |
Create/add to WishlistCreate/add to Wishlist |
3 | 1008432 | Screw, Socket Button Head (1/4-20 x 1-1/4") | 1 | 3 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1026103 | Washer, Nylon (1/4 x 1/2 x 1/32") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 0028202 | Tube, Extension, Full Length | 1 | 1 |
$26.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1027095 | Plug Button, Black (7/8") | 1 | 1 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1107155 | Screw, Phillips Pan Head Tap (#10-32 x 1-1/4") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1028755 | Screw, Phillips Pan Head (#10-32 x 5/8") | 1 | 1 |
$10.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
8 | 1107155 | Screw, Phillips Pan Head Tap (#10-32 x 1-1/4") | 1 | 1 |
$8.00 |
E |
Create/add to WishlistCreate/add to Wishlist |
9 | 1079203 | Decal, Warning Pinch Point | 1 | 1 |
$7.00 |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1115392 | Tube, Arm, Support, Black | 1 | 1 | F |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1115393 | NLA - Tube, Slide, Adjustable, Black | 1 | 1 | N/A | F |
Create/add to WishlistCreate/add to Wishlist |
12 | 1082842 | Plug, Arm, Black | 1 | 1 |
$31.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 7930333 | Locknut (1/4-20) | 25 | 1 |
$44.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1082927 | Tube, Arm, Black | 1 | 1 |
$53.00 |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1091870 | Screw, Socket Button Head w/ Patch (1/4-20 x 3/4") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1095437 | Arm Pivot Assembly | 1 | 1 |
$124.00 |
I |
Create/add to WishlistCreate/add to Wishlist |
17 | 1165484 | NLA - Washer, Nylon (1/4 x 1/2 x 1/32") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1086990 | NLA - Hardware, Arm Attaching | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
19 | 1082699 | T-Nut (1/4-20) | 1 | 2 |
$12.00 |
Create/add to WishlistCreate/add to Wishlist |
|
20 | 1086932 | NLA - Pivot, Back Arm | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 1078214 | Screw, Hex Head w/ Patch (1/4-20 x 1/2") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1119268 | NLA - Kit, Slide Tube w/ Arm Support (Pair) | 2 | 1 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes Items 3,4,6, and 9-17 |
B | Includes Items 3-6 and 8-17 |
C | Includes Items 18-21 |
D | Used for full length arms only |
E | Used for desk length arms only |
F | Item 10 and 11 tube length was changed and item 11 went from 5 to 6 adjustment holes revising the adjustable arm height from 9"-13" to 11"-16". For systems made before 4/21/03, order slide tube/arm support assembly part number 1119268. |
G | Not Shown. Assembly includes 2 ea. of item numbers 9, 10 and 11 |
H | When placing an order for item 2, you must specify as a note "For Tarsys 2GTR seating" or "For Formula TRE seating". |
I | The Arm Pivot Assembly Pin faces down for the Tarsys 2GTR and faces up for the Formula TRE powered seating |
