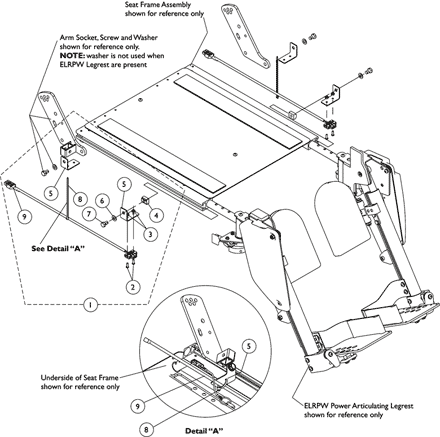

Front Riggings - Power Articulating Legrest - ELRPW/ELRPW22 Harness & Hdwr. For ADJASBA Seat

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1125679

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Locknut (#8-32)	1	4
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	2
2	NLA - Screw, Socket Head (#8-32 x 5/8")	1	4
3	Locknut (#8-32)	1	4
4	T-Nut (5/16-18)	1	2
5	NLA - Bracket, Wire Harness, Black	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	2
8	Tie Wrap (5-5/8" L)	1	2
9	NLA - Harness, ELRPW Power Legrest - Right	1	1
9	NLA - Harness, ELRPW Power Legrest - Left	1	1
2	NLA - Screw, Socket Head (#8-32 x 5/8")	1	4
5	NLA - Bracket, Wire Harness, Black	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
2	NLA - Screw, Socket Head (#8-32 x 5/8")	1	4
3	Locknut (#8-32)	1	4
4	T-Nut (5/16-18)	1	2
5	NLA - Bracket, Wire Harness, Black	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	2
8	Tie Wrap (5-5/8" L)	1	2
9	NLA - Harness, ELRPW Power Legrest - Right	1	1
9	NLA - Harness, ELRPW Power Legrest - Left	1	1
9	NLA - Harness, ELRPW Power Legrest - Right	1	1
9	NLA - Harness, ELRPW Power Legrest - Left	1	1
4	T-Nut (5/16-18)	1	2
9	NLA - Harness, ELRPW Power Legrest - Right	1	1
9	NLA - Harness, ELRPW Power Legrest - Left	1	1
2	NLA - Screw, Socket Head (#8-32 x 5/8")	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
4	T-Nut (5/16-18)	1	2
8	Tie Wrap (5-5/8" L)	1	2
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	2
2	NLA - Screw, Socket Head (#8-32 x 5/8")	1	4
3	Locknut (#8-32)	1	4
4	T-Nut (5/16-18)	1	2
5	NLA - Bracket, Wire Harness, Black	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	2
8	Tie Wrap (5-5/8" L)	1	2
9	NLA - Harness, ELRPW Power Legrest - Right	1	1
9	NLA - Harness, ELRPW Power Legrest - Left	1	1
8	Tie Wrap (5-5/8" L)	1	2
3	Locknut (#8-32)	1	4
5	NLA - Bracket, Wire Harness, Black	1	4
2	NLA - Screw, Socket Head (#8-32 x 5/8")	1	4
3	Locknut (#8-32)	1	4
4	T-Nut (5/16-18)	1	2
5	NLA - Bracket, Wire Harness, Black	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	2
8	Tie Wrap (5-5/8" L)	1	2
9	NLA - Harness, ELRPW Power Legrest - Right	1	1
9	NLA - Harness, ELRPW Power Legrest - Left	1	1

NLA - Kit, ELRPW Power Articulating Legrest Harnesses and Mounting Hardware (Pair)

N/A

A ,B

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-9
B	On 2/28/07 the Dual Leg Actuator Module (DLIAM) harness cable that plugs into item #9 ELRPW Power Legrest Harness Assembly was lengthened from approximately 3" to 20" long to eliminate the need for the ELRPW Power Legrest Harness Assemblies
