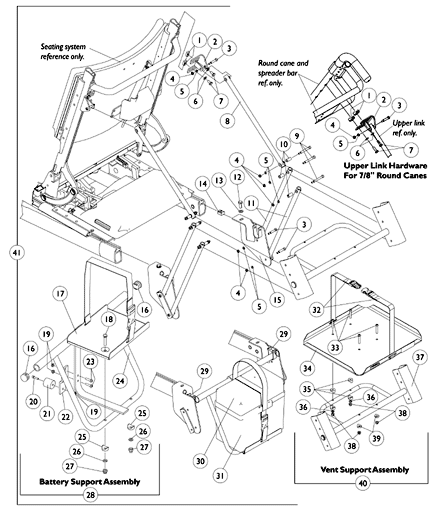

Accessories - Vent Tray Assembly - RWD
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1082908 | NLA - Spacer, Coved (5/16 x 29/32 x 7/16") | 1 | 4 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
2 | 1097191 | NLA - Bracket, Upper Link, Black | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1098289 | NLA - Screw, Shoulder Hex Socket Head (1/4 x 1", #10-24) | 1 | 6 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1026035 | NLA - Locknut (#10-24) | 1 | 12 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1095360 | NLA - Washer, Steel (7/8 x 3/8 x 1/16") | 1 | 12 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1026907 | Washer (1/4 x 1/2 x 1/16") | 1 | 4 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1078214 | Screw, Hex Head w/ Patch (1/4-20 x 1/2") | 1 | 4 |
$10.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
7 | 1045267 | Screw, Hex Head w/ Patch (1/4-20 x 3/4") | 1 | 4 |
$10.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
8 | 1097294 | NLA - Upper Link Assembly, Black | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1030957 | NLA - Screw, Shoulder Hex Socket Head (1/4 x 1-3/4", #10-24) | 1 | 6 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1098553 | NLA - Sleeve (1/4 x 1/16 x 3/4") | 1 | 6 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1097295 | NLA - Lower Link Assembly, Black | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1039860 | Screw, Hex Head w/ Patch (5/16-18 x 3/4") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1025704 | Washer, Flat (5/16 x 5/8 x 1/16") | 1 | 2 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1069724 | T-Nut (5/16-18) | 1 | 2 |
$12.00 |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1097202 | NLA - Bracket, Vent Support, Black - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1097203 | NLA - Bracket, Vent Support, Black - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1027095 | Plug Button, Black (7/8") | 1 | 2 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 1097292 | NLA - Tray, Battery with Strap | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1057955 | Screw, Hex Head (1/4-20 x 1-1/4") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 1056098 | Locknut (#8-32) | 1 | 3 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
20 | 1091871 | NLA - Screw, Socket Head (#8-32 x 5/8") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 0060000 | NLA - Bumper, Rubber | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
22 | 1097207 | NLA - Bracket, Bumper, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
23 | 1003645 | Screw, Socket Button Head (#10-32 x 3/4") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
24 | 1097199 | NLA - Hanger, Battery, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
25 | 1025457 | Spacer, Coved (1/4 x 3/4 x 11/32") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
26 | 1026907 | Washer (1/4 x 1/2 x 1/16") | 1 | 2 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
27 | 1044214 | Nut, Hex with Nylon Cap (1/4-20) | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
28 | 1097208 | NLA - Battery Support Assembly - 22NF Storm Base Models | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
28 | 1097293 | NLA - Battery Support Assembly - GP24 Storm Base Models | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
29 | 1071602 | NLA - Pin, Anchor (Captain Seat) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
30 | 1095747 | Top, Battery Box | 1 | 1 |
$26.00 |
Create/add to WishlistCreate/add to Wishlist |
|
31 | 1057944 | Battery Box Bottom with Strap, 22NF | 1 | 1 |
$80.00 |
Create/add to WishlistCreate/add to Wishlist |
|
32 | 1049846 | Strap Assembly, Battery | 1 | 1 |
$19.00 |
Create/add to WishlistCreate/add to Wishlist |
|
33 | 1008495 | Screw, Socket Button Head (1/4-20 x 1-1/2") | 1 | 4 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
34 | 1098304 | NLA - Vent Tray w/ Strap | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
35 | 1025457 | Spacer, Coved (1/4 x 3/4 x 11/32") | 1 | 4 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
36 | 1026907 | Washer (1/4 x 1/2 x 1/16") | 1 | 2 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
37 | 1098303 | NLA - Support, Vent | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
38 | 7930333 | Locknut (1/4-20) | 25 | 1 |
$44.00 |
Create/add to WishlistCreate/add to Wishlist |
|
39 | 1026099 | Spacer, Coved (1/4 x 11/16 x 1/2") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
40 | 1098959 | NLA - Vent Support Assembly | 1 | 1 | N/A | F |
Create/add to WishlistCreate/add to Wishlist |
41 | 1098968 | NLA - Kit, Vent Tray, RWD | 1 | 1 | N/A | G ,H ,J ,K |
Create/add to WishlistCreate/add to Wishlist |
1098336 | NLA - Instruction Sheet, Vent Tray Assembly Kit | 1 | 1 | N/A | A ,L |
Create/add to WishlistCreate/add to Wishlist |
|
1111729 | NLA - Kit, Vent Tray w/ Extended Anti-tipper Wheel Assembly - 3G Storm Series RWD | 1 | 1 | N/A | A ,G ,I ,K |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Not Shown |
B | For Extruded Back Canes |
C | For 7/8" Round Back Canes |
D | Includes Items 16-27 |
E | Includes Items 16-19, 22-27 |
F | Includes Items 32-39 |
G | 22NF and GP 24 Batteries |
H | Includes Items 1-27, 29-39, and Instruction Sheet |
I | Kit includes item 41 and a complete pair of extended anti-tip wheel assemblies with instruction sheets. For extended anti-tip wheel assembly components, see 3rd Gen Storm Series parts book form number 00-191. |
J | When ordering a vent tray that wasn't originally ordered on-chair for 3rd Generation Storm Series models, extended anti-tip wheel assemblies must be present. Order the vent tray and extended anti-tip wheel assembly kit part number 1111729. |
K | Used with spring shock systems only |
L | Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy. |
