Switch - Mercury Free & Hardware - Conventional Actuator Motor only

Print this page

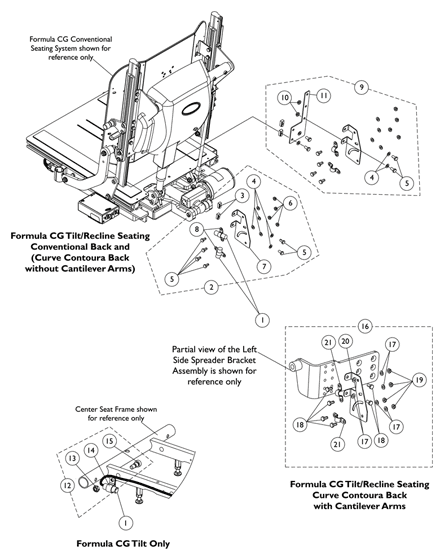

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1168753

Switch, Drive Lockout Mercury Free Ball (MK6i) (18" L)

$69.00

Create/add to Wishlist

1140099

Switch, Drive Lockout Mercury Free Ball (MK6i) (50" L)

$93.00

Create/add to Wishlist

1146289

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	T-Nut (1/4-20)	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	6
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	6
6	Locknut (1/4-20)	1	4
7	Bracket, Mercury Switch Mounting, Black	1	1
8	NLA - Bracket, Switch Mounting, Black	1	2
9	T-Nut (1/4-20)	1	2
10	Washer (1/4 x 1/2 x 1/16")	1	6
11	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	6
12	Locknut (1/4-20)	1	4
13	Bracket, Mercury Switch Mounting, Black	1	1
14	NLA - Bracket, Switch Mounting, Black	1	2

Kit, Switch Mounting Hardware (Formula CG Tilt/Recline Seating System)

$128.00

Create/add to Wishlist

1170695

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
12	Washer (1/4 x 1/2 x 1/16")	1	2
15	Locknut (1/4-20)	1	2
16	Plate, Adapter, Black, For Conventional Back w/ Cantilever Arms	1	1
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
10	Locknut (1/4-20)	1	2
11	Plate, Adapter, Black, For Conventional Back w/ Cantilever Arms	1	1

NLA - Kit, Adapter Plate and Hardware For Conventional Back w/ Cantilever Arms

Create/add to Wishlist

1121712

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Locknut (5/16-18)	1	1
4	NLA - Bracket, Cable/Wire Mounting, Black	1	1
5	Screw, Shoulder Hex Socket Head w/ Patch (3/8" x 3/8", 5/16-18)	1	1
3	Locknut (5/16-18)	1	1
4	NLA - Bracket, Cable/Wire Mounting, Black	1	1
5	Screw, Shoulder Hex Socket Head w/ Patch (3/8" x 3/8", 5/16-18)	1	1
13	Locknut (5/16-18)	1	1
14	NLA - Bracket, Cable/Wire Mounting, Black	1	1
15	Screw, Shoulder Hex Socket Head w/ Patch (3/8" x 3/8", 5/16-18)	1	1
16	Locknut (5/16-18)	1	1
17	NLA - Bracket, Cable/Wire Mounting, Black	1	1
18	Screw, Shoulder Hex Socket Head w/ Patch (3/8" x 3/8", 5/16-18)	1	1

Kit, Switch Mounting Hardware (Formula CG Tilt Only)

$16.00

Create/add to Wishlist

1169836

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	Washer (1/4 x 1/2 x 1/16")	1	6
18	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	6
19	Locknut (1/4-20)	1	4
20	Bracket, Mercury Switch Mounting, Black	1	1
21	NLA - Bracket, Switch Mounting, Black	1	2

NLA - Kit, Switch Mounting Hardware

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Tilt and Recline seating systems use a quantity of (2) mercury free ball switches and are shorter length than the Tilt Only version.
B	Includes items 3-8. When Cantilever Arms are used with a Conventional Back, item #9 must also be ordered to provide complete mounting hardware
C	Includes items 13-15.
D	Used for Tilt Only seating systems.
E	Includes items 17-21. This mounting hardware is only used for Contoura Seating Systems that have Cantilever Arms. The Cantilever Arms attach to the Spreader Bracket Assembly that is partially shown.
F	Includes items 4, 5, 10 and 11. When Cantilever Arms are used with a Conventional Back, item #2 in addition to item #9 Hardware is used. Item #9 illustrates how all the hardware lays out when Cantilever Arms are used.

Catalog Literature

Parts Books for Formula™CG Powered Seating and Front Riggings CGT/CGTE/CGTR/CGTRE
