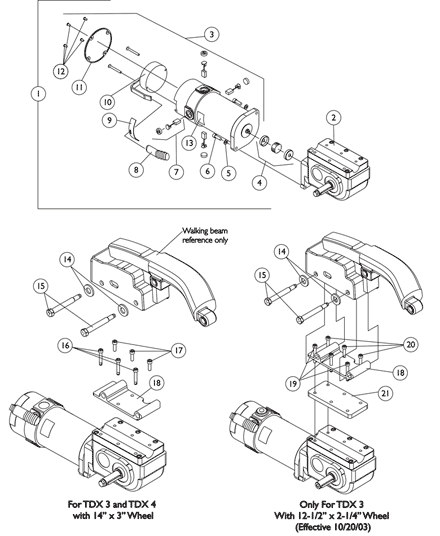

Motors - 4-Pole - Gearbox & Mounting Hardware
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | When a new gearbox or mounting screws are ordered, (2 ea.) metric and (2 ea.) non-metric screws (item 6) must be ordered. Invacare Corp. utilizes alternate suppliers for this part number. |
| B | Kit includes (4) Brushes, (4) Brush Caps and Instruction Sheet. |
| C | Before 12/16/05. NOTE: Brake Kits are not available for the Heavy Duty Motor Assembly part #'s 1121144 and 1121145 |
| D | Use existing screws when installing the Brake Repair Kit. The Motor Brake Mounting Screws are not saleable. |
| E | Non-Heavy duty for 300 Lb. weight limit. Standard on TDX3 and (TDX4 Before 10/9/06). Tarsys Powered Seating with upgrade model codes HD250T3 and HD250T4 Before 10/9/06. Tarsys Powered Seating no longer offered after 10/8/06 |
| F | Heavy duty for 400 Lb. weight limit. (Upgrade on TDX3 Before 10/9/06 & not offered on TDX3 After 10/8/06) (Upgrade on TDX4 Before 10/9/06 & Standard on TDX4 After 10/8/06) (Standard on TDX3 SE introduced 11/15/06 for 300 Lb weight limit) |
| G | No longer available, use 1108452 (Item 11) as the replacement part. |
