1

See Chart

Added to Cart

Back Height	Back Cane- No Push Handle 10 Deg. Bend	Back Cane- Push Handle Straight	Back Cane- Push Handle 10 Deg. Bend
16"	1048992- NLA	1048558	1045575 MSRP: $80.00
17"	1048993- NLA	1048559	1045576
18"	1048994- NLA	1048560	1045577 MSRP: $80.00
19"	1048995- NLA	1048561	1045578 MSRP: $80.00
20"	1048996- NLA	1048562	1045579- NLA
21"	N/A	N/A	1052227- NLA
22"	N/A	N/A	1052230
23"	N/A	N/A	1054521- NLA
24"	N/A	N/A	1054524- NLA

Create/add to Wishlist

#1 Back Cane Assemblies

N/A

Create/add to Wishlist

2

See Chart

Added to Cart

Chair Width		Part Number
16"		1043873
17"		1043874
18"		1043875 MSRP: $42.00
19"		1043876
20"		1043877
21"		1043878- NLA
22"		1043879- NLA
23"		1043880- NLA
24"		1043881- NLA

Create/add to Wishlist

#2 Spreader Bar

N/A

Create/add to Wishlist

3

1135506

Package, Foam Hand Grip (9" L)

10

1

$40.00

Create/add to Wishlist

4

1130582

Package, Plug Button, Black (7/8")

10

1

$30.00

Create/add to Wishlist

5

1070457

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
7	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
8	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Locknut (1/4-20)	1	4
11	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
12	Locknut (5/16-24)	1	2
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
7	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
8	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Locknut (1/4-20)	1	4
11	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
12	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
7	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
8	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Locknut (1/4-20)	1	4
11	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
12	Locknut (5/16-24)	1	2
12	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
7	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
8	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Locknut (1/4-20)	1	4
11	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
7	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
8	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Locknut (1/4-20)	1	4
11	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
12	Locknut (5/16-24)	1	2
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4

NLA - Kit, Back Cane Attaching Hardware

2

1

N/A

A

Create/add to Wishlist

5

1070458

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	NLA - Insert, Non-Threaded Back Cane (For Back Heights 21" and Higher)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	NLA - Insert, Non-Threaded Back Cane (For Back Heights 21" and Higher)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	NLA - Insert, Non-Threaded Back Cane (For Back Heights 21" and Higher)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	NLA - Insert, Non-Threaded Back Cane (For Back Heights 21" and Higher)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
7	NLA - Insert, Non-Threaded Back Cane (For Back Heights 21" and Higher)	1	2
8	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Locknut (1/4-20)	1	4
11	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
12	Locknut (5/16-24)	1	2
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	NLA - Insert, Non-Threaded Back Cane (For Back Heights 21" and Higher)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	NLA - Insert, Non-Threaded Back Cane (For Back Heights 21" and Higher)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
11	Locknut (1/4-20)	1	4

NLA - Kit, Back Cane Attaching Hardware

2

1

N/A

B

Note Code	Definition
A	Includes items 6-12 and used for 16-20" high back canes
B	Includes items 6-12 and used for 21-24" high back canes

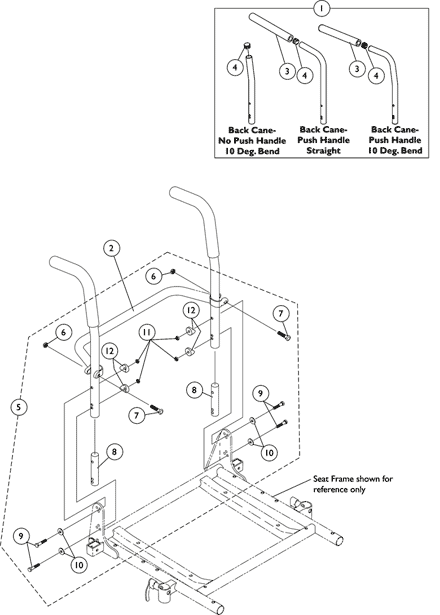

Canes - Back - Spreader Bars & Attaching Hardware
