1

1046925

Hardware, Crossbrace (14 - 15" W)

1

$25.00

A ,C ,E

Create/add to Wishlist

1

1110085

Hardware, Crossbrace, Hemi (14 - 15" W)

1

B ,C ,D

Create/add to Wishlist

1

1034077

Hardware, Crossbrace (16 - 18" W)

1

$34.00

A ,C ,E

Create/add to Wishlist

1

1110086

Hardware, Crossbrace, Hemi (16 - 18" W)

1

$25.00

B ,C ,D

Create/add to Wishlist

1

1120639

Hardware, Crossbrace (19" W)

1

$25.00

A ,C

Create/add to Wishlist

1

1034078

Hardware, Crossbrace (20 - 22" W)

1

$25.00

A ,C ,E

Create/add to Wishlist

1

1110087

Hardware, Crossbrace, Hemi (20 - 22" W)

1

$25.00

B ,C ,D

Create/add to Wishlist

2

1001762

Screw, Socket Button Head (1/4-20 x 1-3/4")

1

2

$9.20

Create/add to Wishlist

3

1008495

Screw, Socket Button Head (1/4-20 x 1-1/2")

1

4

$10.00

Create/add to Wishlist

4

1012172

NLA - Clamp, Saddle

1

2

N/A

Create/add to Wishlist

5

1016261

Screw, Hex Head (5/16-24 x 3-1/4")

1

$10.00

Create/add to Wishlist

6

1016263

Spacer, Coved (3/4 x 1 x 1/2")

1

4

$9.20

Create/add to Wishlist

7

1016301

Washer, Nylon (5/16 x 7/8 x 1/8")

1

$10.00

Create/add to Wishlist

8

1016652

Washer (5/16 x 9/16 x 1/32")

1

2

$10.00

Create/add to Wishlist

9

1029501

Plug Button, Black (1")

1

4

$7.20

Create/add to Wishlist

10

60264X001

Locknut (5/16-24)

1

$8.00

Create/add to Wishlist

11

60275X000

Locknut (1/4-20)

1

8

$10.00

Create/add to Wishlist

12

1046501

Link, Pivot, Black (14 - 15" W)

1

2

$10.00

A

Create/add to Wishlist

12

1110000

Link, Pivot, Black (14 - 15" W)

1

2

$10.00

B

Create/add to Wishlist

12

1012173

Link, Pivot, Black (16 - 18" W)

1

2

$10.00

A

Create/add to Wishlist

12

1110001

Link, Pivot, Black (16 - 18" W)

1

2

$10.00

B

Create/add to Wishlist

12

1046503

Link, Pivot, Black (19" W)

1

2

$10.00

A

Create/add to Wishlist

12

1018238

Link, Pivot, Black (20 - 22" W)

1

2

$10.00

A

Create/add to Wishlist

12

1110002

Link, Pivot, Black (20 - 22" W)

1

2

$10.00

B

Create/add to Wishlist

13

1012180

Bracket, Pivot, Black

1

2

$8.00

Create/add to Wishlist

14

See Chart

Added to Cart

Chair Size		Part Number
16" Wide X 16" Deep 16" Wide x 18" Deep		1109960 MSRP: $73.00
18" Wide X 16" Deep 18" Wide X 18" Deep		1109961 MSRP: $76.00
20" Wide X 16" Deep 20" Wide X 18" Deep 20" Wide X 20" Deep		1109962 MSRP: $76.00

Create/add to Wishlist

Crossbraces - 9000SL

N/A

Create/add to Wishlist

14

See Chart

Added to Cart

Chair Size		Part Number
16" Wide x 16" Deep 16" Wide x 17" Deep 16" Wide x 18" Deep		1120628 MSRP: $131.00
16" Wide x 19" Deep 16" Wide x 20" Deep		1120627 MSRP: $131.00
17" Wide x 16" Deep 17" Wide x 17" Deep 17" Wide x 18" Deep		1120630
17" Wide x 19" Deep 17" Wide x 20" Deep		1120629
18" Wide x 16" Deep 18" Wide x 17" Deep 18" Wide x 18" Deep		1120632 MSRP: $131.00
18" Wide x 19" Deep 18" Wide x 20" Deep		1120631 MSRP: $131.00
19" Wide x 16" Deep 19" Wide x 17" Deep 19" Wide x 18" Deep		1120633
19" Wide x 19" Deep 19" Wide x 20" Deep		1120634
20" Wide x 16" Deep 20" Wide x 17" Deep 20" Wide x 18" Deep		1120635 MSRP: $131.00
20" Wide x 19" Deep 20" Wide x 20" Deep		1120636 MSRP: $131.00
22" Wide x 16" Deep 22" Wide x 17" Deep 22" Wide x 18" Deep		1120638 MSRP: $131.00
22" Wide x 19" Deep 22" Wide x 20" Deep		1120637 MSRP: $131.00

Create/add to Wishlist

Crossbraces - 9000XDT

N/A

Create/add to Wishlist

14

See Chart

Added to Cart

Chair Size		Part Number
14" Wide X 16" Deep 14" Wide X 17" Deep 14" Wide X 18" Deep		1123881 MSRP: $125.00
15" Wide X 16" Deep 15" Wide X 17" Deep 15" Wide X 18" Deep		1046110 MSRP: $119.00
16" Wide X 16" Deep 16" Wide X 17" Deep 16" Wide X 18" Deep		1123882 MSRP: $125.00
17" Wide X 16" Deep 17" Wide X 17" Deep 17" Wide X 18" Deep		1123883 MSRP: $125.00
18" Wide X 16" Deep 18" Wide X 17" Deep 18" Wide X 18" Deep		1123884 MSRP: $131.00
19" Wide X 16" Deep 19" Wide X 17" Deep 19" Wide X 18" Deep		1122090 MSRP: $125.00
20" Wide X 16" Deep 20" Wide X 17" Deep 20" Wide X 18" Deep		1109962 MSRP: $76.00
22" Wide X 16" Deep 22" Wide X 17" Deep 22" Wide X 18" Deep		1109963 MSRP: $73.00

Create/add to Wishlist

Crossbraces - 9000XT

N/A

Create/add to Wishlist

14

See Chart

Added to Cart

Chair Size		Part Number
14" Wide X 16" Deep 14" Wide X 17" Deep 14" Wide X 18" Deep		1109959 MSRP: $73.00
16" Wide X 16" Deep 16" Wide X 17" Deep 16" Wide X 18" Deep		1109960 MSRP: $73.00
18" Wide X 16" Deep 18" Wide X 17" Deep 18" Wide X 18" Deep		1109961 MSRP: $76.00
19" Wide X 16" Deep 19" Wide X 17" Deep 19" Wide X 18" Deep		1122090 MSRP: $125.00
20" Wide X 16" Deep 20" Wide X 17" Deep 20" Wide X 18" Deep		1109962 MSRP: $76.00
22" Wide X 16" Deep 22" Wide X 17" Deep 22" Wide X 18" Deep		1109963 MSRP: $73.00

Create/add to Wishlist

Crossbraces - 9000XT Recliner

N/A

Note Code	Definition
A	For use on chairs manufactured 4/1/03 thru 1/23/05 with two piece Pivot Link and Pivot Bracket design. The exception is the 9XT 19" wide and 9XDT 20" & 22" wide models that continue to use the two piece Pivot Link and Pivot Bracket Design.
B	For use on chairs manufactured before 4/1/03 and after 1/23/05 with one piece Pivot Link design.
C	Includes items 2 thru 13.
D	Does not include item 13; is not needed for the assembly.
E	Pivot Link and Bracket sold separately.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

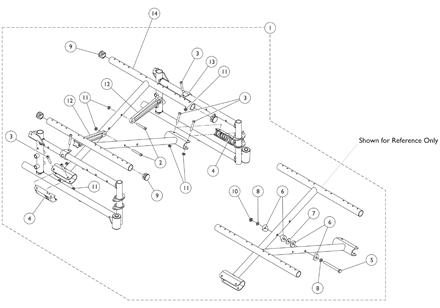

Crossbraces & Crossbrace Hardware
