Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

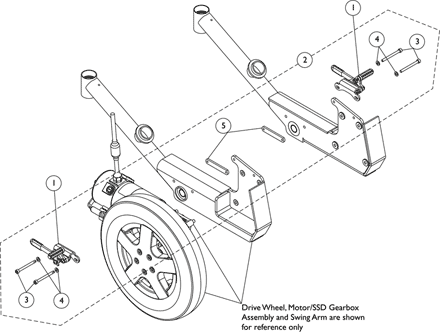

1169217

NLA - Wheel Lock Assembly - Right

N/A

1169218

NLA - Wheel Lock Assembly - Left

N/A

1127688

Package, Plastic Tip, Black

$18.00

1170676

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Socket Head Cap w/ Patch (M6 x 1 x 65mm)	1	4
4	Washer (1/4 x 1/2 x 1/16")	1	4
5	Nut, Weld (M6 x 1 x 69.60mm Spacing)	1	2

NLA - Kit, Wheel Lock Mounting Hardware (Pair)

N/A

Note Code	Definition
A	Not Shown.
B	Includes items 3-5.
C	Holes were added to the Swing Arms on 1/7/11 to accommodate Wheel Lock Assemblies. Wheelchair manufactured before 1/7/11must be returned to Invacare in order to replace the Swing Arms and then have the Wheel Locks installed.
