Upper Tilt Assembly

Print this page

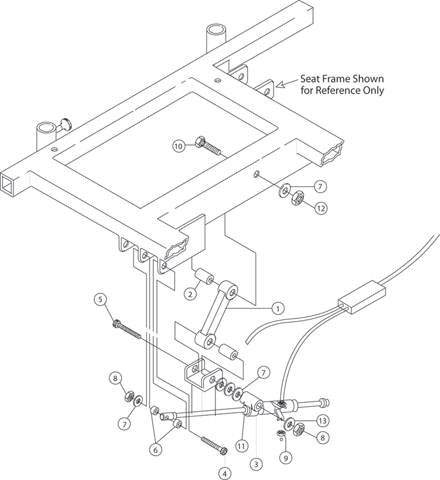

Upper Tilt Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	440099	Front Support Link	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	440101	Bushing	0	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3-13	460080	Link, Porter Piston Hardware	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1037658	Cylinder, Lock, Silver - Left	1	0	$163.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1008495	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	0	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	360119	Screw, Shoulder Hex Socket (5/16 X 2.5")	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	361568	Nylon Spacer	2	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	3	0	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1025736	Locknut (1/4-20)	2	0	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	R2759	Locknut, Steel Zinc (M6)	2	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1042484	NLA - Screw, Hex Head (5/16-18 x 2")	1	0	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	440600	Spacer Porter Piston	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1026158	Locknut (5/16-18)	1	0	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	319476	Washer	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Part #1037658 is used in more than one application. In other wheelchair model applications their will be a right and a left sided Lock Cylinder called out.

Catalog Literature

Parts Books for Concept 45 Tilt-N-Space
