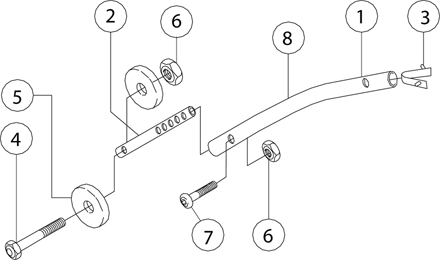

Anti-Tipper Assembly
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2-8 | 440149 | Kit, Anti-Tip Hardware, 30 Degree (Pair) | 0 | 1 | B |
Create/add to WishlistCreate/add to Wishlist |
|
1 | 3114MS | Anti-Tipper Tube | 2 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
2 | 3114MT | Adjustment Tube | 2 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
3 | 361446 | NLA - Button, Lock | 2 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1023965 | NLA - Screw, Socket Head (#10-32 x 1-1/2") | 2 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 3114MR | Anti-Tipper Roller | 4 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
6 | 1025735 | Locknut (#10-32) | 2 | 0 |
$3.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1025714 | Screw, Phillips Pan Head (#10-32 x 1-1/8") | 2 | 0 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 3115MS | Anti-Tipper Tube (30 Degree) | 2 | 0 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Used with 17, 17.5, 18, 18.25, 18.5 and 18.75 Seat to Floor Height models. |
B | Used with 14.5 and 15.25 Seat to Floor Height models. |
