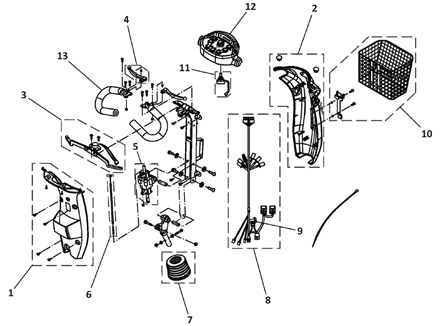

Steering

Print this page

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1521497	Cover, Steering Rear, Complete, Silver	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1521660	Cover, Steering, Rear, Complete, Blue	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1530006	Cover, Steering, Front, Complete, Red	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1521495	Cover, Steering, Front, Complete, Silver	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1521659	Cover, Steering, Front, Complete, Blue	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1521575	Starter	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1521578	Regulator Rod	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1505279	Adjustable Steering Assembly	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1521583	Cable, Starter to Adjustable Steering Assembly	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1521586	Cover, Steering Joint	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1521576	Wire Harness	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1521577	Fuse (10 Amp)	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1521584	Basket, Front	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1505462	Variable Resistor, Complete (30.0KO)	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1505460	Knob, Speed Control	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1527790	Foam Grip	0	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1164848	Package, Ignition Key	10	1	$71.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not shown in the illustration.
