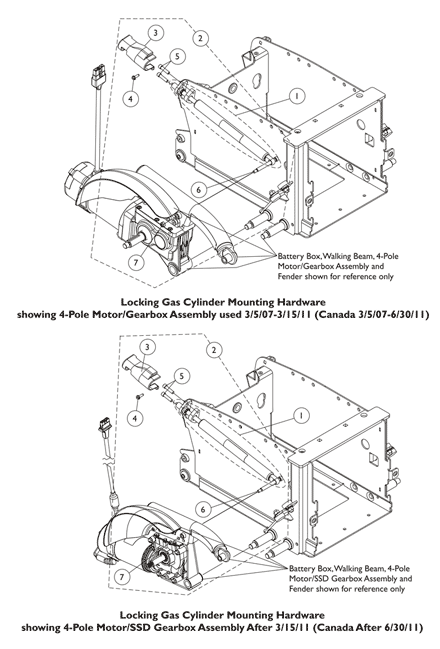

Cylinders - Locking Gas - TDX SP/SP-GT - After 3/4/07 (Canada After 6/30/11)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1144661

Cylinder, Locking Gas

$427.00

Create/add to Wishlist

1144655

Cylinder, Locking Gas

$415.00

Create/add to Wishlist

1144598

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Boot - Right	1	1
4	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	1
5	NLA - Screw, Socket Head Cap w/ Patch (1/4-20 x 1")	1	2
6	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
7	Locknut (1/4-20)	1	1
3	Boot - Right	1	1
4	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	1
5	NLA - Screw, Socket Head Cap w/ Patch (1/4-20 x 1")	1	2
6	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
7	Locknut (1/4-20)	1	1

Kit, Locking Gas Cylinder Mounting Hardware - Right

$23.00

Create/add to Wishlist

1144599

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Boot - Left	1	1
4	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	1
5	NLA - Screw, Socket Head Cap w/ Patch (1/4-20 x 1")	1	2
6	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
7	Locknut (1/4-20)	1	1
3	Boot - Left	1	1
4	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	1
6	Screw, Shoulder Hex Socket Head (5/16" x 2-1/2", 1/4-20)	1	1
7	Locknut (1/4-20)	1	1
5	NLA - Screw, Socket Head Cap w/ Patch (1/4-20 x 1")	1	2

Kit, Locking Gas Cylinder Mounting Hardware - Left

$23.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-7. Locking Gas Cylinder Mounting Hardware is also used for 4-Pole Motor/SSD Gearbox Assemblies introduced 3/15/11.
B	Used for 300 Lb. User Weight Limit
C	Used for 400 Lb. User Weight Limit

Catalog Literature

Parts Books for TDX®SP/SP-GT/SR
