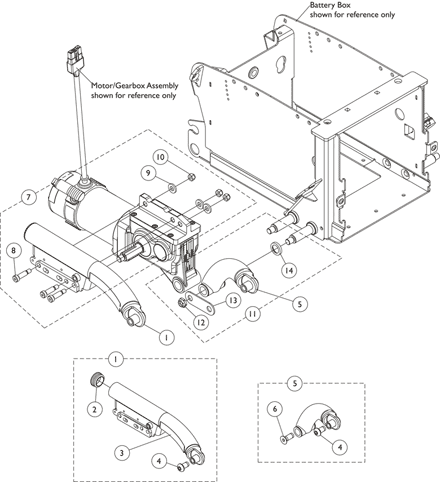

Walking Beam - Lower Pivot Link & Mounting Hardware - TDX SP/SP-GT - Before 3/16/11
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | The TDX SP yellow decal is used for all frame colors except 30P Sunny Yellow, 60P Silver Metallic and 71P Silver Vein |
| B | The TDX SP black decal is used for 30P Sunny Yellow, 60P Silver Metallic and 71P Silver Vein frame colors only |
| C | Specify frame color when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Options". |
| D | Includes items 8-10 |
| E | Includes items 12-14. Order two hardware kits when a total removal of the Washer Plate from the Motor Assembly "and" Lower Pivot Link Assembly is required. |
| F | Item 10 was changed from a round washer to a washer plate 3/5/07 and is backward compatible in the field |
| G | Lower Pivot Link for TDX SP includes the Lower Pivot Link Assembly, items 4, 6 and contains a 2 ea. press fitted plastic Flange Bearing (not shown). The Flange Bearings are not sold separately. |
| H | TDX SP and TDX SC/Spree use the same Lower Pivot Link part #. When a new Lower Pivot Link is ordered, a new Screw, Socket Flat Head w/ Patch (1/2-13 x 1-1/4") will be included. The screw is used for TDX SC/Spree models only. |
| I | Includes the Walking Beam Assembly and items 2-4 |
