Wheels - Drive Wheels - Free Wheel Hub Mount & Hardware (14" x 3") TDX SP/SP-GT - Before 3/16/11

Print this page

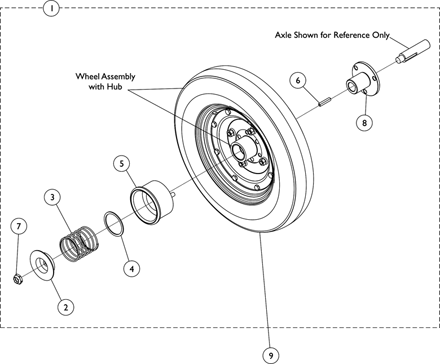

Free Hub Mount & Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1163133	Free Wheel Hub Assembly	1	1	$328.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1078090	Cup, Washer	1	1	$18.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1079002	NLA - Spring, Compression (2-3/32 x 2-1/4 x 3/32")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1079001	NLA - Washer, Flat (1-13/16 x 2-1/8 x 1/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1077022	Knob, Engagement, Black	1	1	$82.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1000180	Key (3/16 x 1-1/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1001979	Locknut (1/2-20)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1163132	Sleeve, Axle	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1081358	Drive Wheel Assembly, Pneumatic w/ Hub, Grey Tire/Black Rim (14 x 3")	1	1	$279.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1079298	Drive Wheel Assembly, Pneumatic, Grey Tire/Black Rim (14 x 3")	1	1	$228.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1039652	Tire, Pneumatic, Grey (14" x 3")	1	1	$110.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1039651	Tube, Inner, Black (14 x 3")	1	1	$35.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1081359	Drive Wheel Assembly, Flat Free w/ Hub, Grey Tire/Black Rim (14 x 3")	1	1	$336.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1079301	Drive Wheel Assembly, Flat Free, Grey Tire/Black Rim (14 x 3")	1	1	$166.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1101754	Tire w/ Foam Fill Insert, Grey (14" x 3")	1	1	$161.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-8.
B	Wheel Assembly with Hub and item #1 Free Wheel Hub Assembly is required when changing from a Non-Free Wheel Hub to a Free Wheel Hub Assembly.
C	Wheel Assembly without the Hub can be used in the field for customers that originally ordered a FHUB option on-chair and wants to assemble their existing Hub to the new Wheel Assembly
