EQUIPMENT US Site

1

8881083213

NLA - Pad, Arm, Desk Length - Right (9" L x 2" W)

1

N/A

A

Create/add to Wishlist

1

8881083214

NLA - Pad, Arm, Desk Length - Left (9" L x 2" W)

1

N/A

A

Create/add to Wishlist

1

8881053570

Kit, Arm Pad w/ Screws, Desk Length (Pair)

2

1

$53.00

A

Create/add to Wishlist

1

8881083215

NLA - Pad, Arm, Full Length - Right (14" L x 2" W)

1

N/A

A

Create/add to Wishlist

1

8881083216

NLA - Pad, Arm, Full Length - Left (14" L x 2" W)

1

N/A

A

Create/add to Wishlist

1

8881053571

Kit, Arm Pad w/ Screws, Full Length (Pair)

2

1

$53.00

A

Create/add to Wishlist

2

1055205

Package, Screw Phillips Pan Head (#10-32 x 1-3/8")

2

1

$10.00

Create/add to Wishlist

3

1069639

T-Arm Assembly w/ Plug Buttons, Desk Length, Low Range, Black

1

$45.00

Create/add to Wishlist

3

1069643

T-Arm Assembly w/ Plug Buttons, Full Length, Low Range, Black

1

$45.00

Create/add to Wishlist

4

1027095

Plug Button, Black (7/8")

1

2

$9.20

Create/add to Wishlist

5

1069635

Post, Arm, Low Range

1

$83.00

Create/add to Wishlist

6

1073424

Kit, Clothing Guard, Low Range - Right

1

$105.00

Create/add to Wishlist

6

1073425

Kit, Clothing Guard, Low Range - Left

1

$105.00

Create/add to Wishlist

7

1069652

NLA - Guard, Clothing, Low Range

1

N/A

Create/add to Wishlist

8

1069634

Tube, Support, Low Range, Black - Right

1

Create/add to Wishlist

8

1073247

NLA - Tube, Support, Low Range, Black - Left

1

N/A

Create/add to Wishlist

9

1028427

Grip, Foam

1

$9.00

Create/add to Wishlist

10

1025731

Locknut (#10-32)

1

$8.00

Create/add to Wishlist

11

1076839

NLA - Lever, Locking

1

N/A

Create/add to Wishlist

12

1025716

Screw, Phillips Pan Head (#10-32 x 11/16")

1

$8.00

Create/add to Wishlist

13

1073196

NLA - Spring, Torsion

1

N/A

Create/add to Wishlist

14

1006773

NLA - Screw, Socket Button Head (1/4-20 x 1/2")

1

4

N/A

Create/add to Wishlist

15

1075069

NLA - Clamp, Clothing Guard - Right

1

N/A

Create/add to Wishlist

15

1075070

NLA - Clamp, Clothing Guard - Left

1

N/A

Create/add to Wishlist

16

1151356

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	Bracket, "T" Arm Socket	1	1
18	Insert, Arm Socket, Black	1	2
19	NLA - Bracket, Socket, Black	1	1
21	Lockwasher (1/4 x 15/32 x 1/64")	1	4
20	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	4
17	Bracket, "T" Arm Socket	1	1
18	Insert, Arm Socket, Black	1	2
19	NLA - Bracket, Socket, Black	1	1
20	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	4
21	Lockwasher (1/4 x 15/32 x 1/64")	1	4
20	NLA - Screw, Socket Button Head (1/4-28 x 3/4")	1	4
21	Lockwasher (1/4 x 15/32 x 1/64")	1	4
17	Bracket, "T" Arm Socket	1	1
18	Insert, Arm Socket, Black	1	2
19	NLA - Bracket, Socket, Black	1	1

Kit, "T" Arm Socket Mounting Hardware

1

$59.00

B

Create/add to Wishlist

22

1098960

Screw, Socket Head w/ Patch (5/16-18 x 5/8")

1

2

$8.00

Create/add to Wishlist

23

1069724

T-Nut (5/16-18)

1

2

$12.00

Note Code	Definition
A	Specify U67 upholstery color when ordering.
B	Includes items 17-21

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

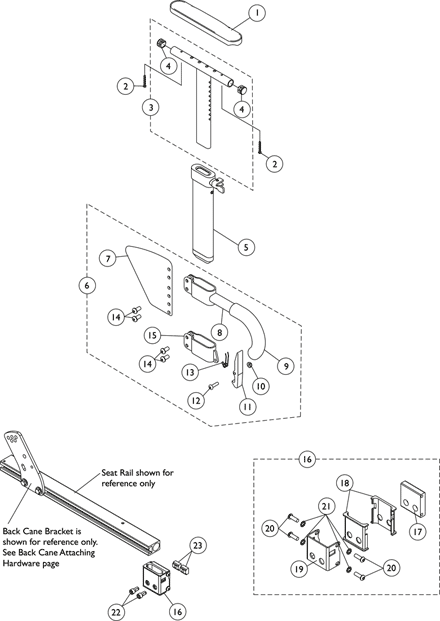

Arms - "T" & Hardware
