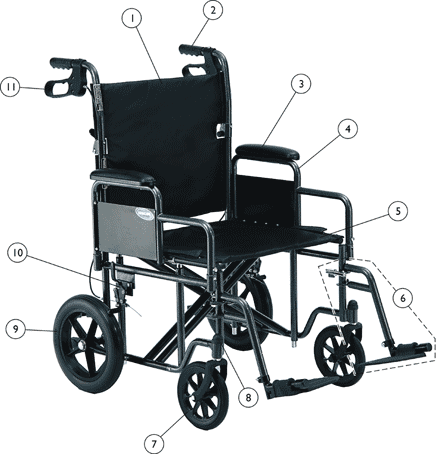

02. Chair Components - Invacare Bariatric Transport - TRHD22FR (After 9/21/09)
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 |
1149923
|
NLA - Upholstery Kit, Back w/Hardware | 1 | 1 |
$56.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | 1168462 | Kit, Hand Grip | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 3 | 1168455 | NLA - Kit, Arm Pad w/Screws (Pair) | 2 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1168456 | NLA - Arm Assembly, Black - Right (Includes Arm, Clothing Guard, Arm Pad and Hardware) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1168459 | Arm Assembly, Black - Left (Includes Arm, Clothing Guard, Arm Pad and Hardware) | 1 | 1 |
$62.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 |
1149924
|
NLA - Upholstery Kit, Seat w/Hardware | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1168457 | Front Rigging w/Hardware, Silver Vein - Right | 1 | 1 |
$70.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1168458 | NLA - Front Rigging w/Hardware, Silver Vein - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1168454 | NLA - Kit, Wheel, Front (Includes Fork and Front Wheel Assembly, (2) Bearings, Locknut and Head Tube Cap | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1141761 | Package, Cap, End, Black, Head Tube | 10 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 9 | 1168453 | NLA - Wheel Assembly w/ Hub Cap - Rear | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1168460 | NLA - Wheel Lock Assembly - Right (Includes Complete Wheel Lock Assembly and Mounting Hardware) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1168461 | NLA - Wheel Lock Assembly - Left (Includes Complete Wheel Lock Assembly and Mounting Hardware) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 11 | 1149223 | NLA - Hand Brake w/Cable Assembly (Pair) | 2 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 1149926 | NLA - Package, Spacers | 25 | 1 | N/A | A ,B |
Create/add to WishlistCreate/add to Wishlist |
|
| 1149927 | NLA - Package, Flanged Bearings | 25 | 1 | N/A | A ,B |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Not shown |
| B | Used for Rear Wheel. Bearings and Spacers are No Longer Available. A new Rear Wheel Assembly item #9 must be ordered. Includes the Hub Cap, Flanged Bearings and Spacer also. |
