Seats - Captain (After 10/31/01)

Print this page

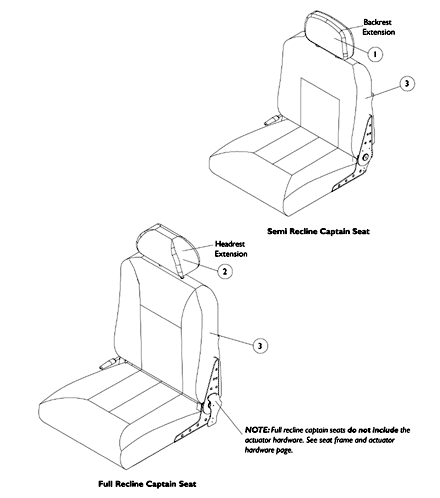

Captain Seat Assembly - After 10/31/01

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Item Number		Backrest / Headrest Extension and Captain Seat Assemblies		All Grey Fabric		All Grey Vinyl		All Tan Vinyl
1		Backrest (For Semi-Recline)		1106969- NLA		1108408 MSRP: $221.00		1106968- NLA
2		Headrest (For Full-Recline)		1106967		1108409- NLA		1106966
3		18" Wide Semi Recline with Backrest		1109254- NLA		1109242 MSRP: $1,133.00		1109248- NLA
3		18" Wide Full Recline with Headrest		1109257- NLA		1109245- NLA		1109251- NLA
3		20" Wide Semi Recline with Backrest		1159892- NLA		1159891 MSRP: $1,147.00		1159893- NLA
3		20" Wide Full Recline with Headrest		1109258- NLA		1109246- NLA		1109252- NLA
3		22" Wide Semi Recline with Backrest		1109256- NLA		1109244 MSRP: $1,133.00		1109250- NLA
3		22" Wide Full Recline with Headrest		1109259		1109247- NLA		1109253- NLA
Not Shown		Hinge Bracket w/ Lever Semi-Recline - Right		Note-A 1116634 MSRP: $37.00		Note-A 1116634 MSRP: $37.00		Note-A 1116634 MSRP: $37.00
Not Shown		Hinge Bracket w/o Lever Semi-Recline - Left		Note-A 1116635 MSRP: $37.00		Note-A 1116635 MSRP: $37.00		Note-A 1116635 MSRP: $37.00
Not Shown		Screw, Phillips Truss Head (1/4-20 x 3/4")		Note-B 5000136 MSRP: $8.00		Note-B 5000136 MSRP: $8.00		Note-B 5000136 MSRP: $8.00

Create/add to Wishlist

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Not Shown. Hinge Brackets used for ALL Semi-Recline Seat models only. For attaching Hinge Bracket, see part number 5000136.
B	Not shown, Screw for Hinge Bracket(s) 1116634 and 1116635. Total of (7) required for each Bracket.

Captain Seat Assembly - After 10/31/01

N/A

N/A

N/A

Catalog Literature

Parts Books for Arrow® FWD
