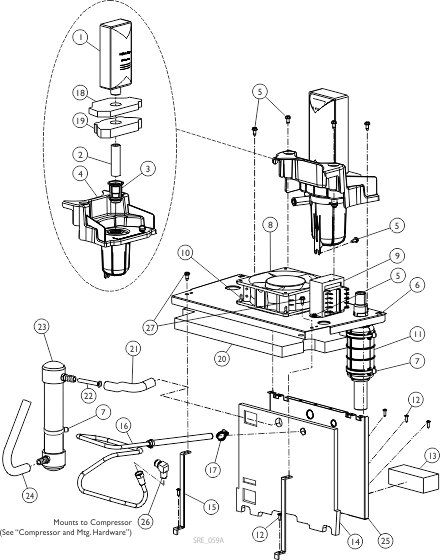

Sound Box Assembly (Perfecto2 AW)
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1153703 | NLA - Tube, Clear (1/2 x 2-3/4") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1106675 | Coupling, Inlet Filter | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1143435 | Resonator Assembly | 1 | 1 |
$21.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1128404 | Screw, Phillips Hex Washer Head (#8-32 x 3/8") | 1 | 7 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1143473 | Soundbox, Horizontal | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 2001682 | Tie Wrap (8" L) | 1 | 3 |
$11.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
8 | 1136943 | NLA - Tech Only - Fan, Exhaust | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1153690 | NLA - Tech Only - Transformer Assembly, 20V - PO2AW | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1143491 | Rivet, Isolator Mount | 1 | 4 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1143554 | Muffler Assembly | 1 | 1 |
$21.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1108810 | Screw, Hi-Lo Six Lobe Drive (#10-16 x 5/8") | 1 | 5 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1147917 | Mount, Foam Valve 4-Way | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1154030 | Foam, Soundbox - Vertical | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
15 | 1143474 | Gusset, Soundbox | 1 | 2 |
Create/add to WishlistCreate/add to Wishlist |
||
16 | 1172007 | NLA - Heat Exchanger Assembly | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
16 | 1186169 | Heat Exchanger Assembly | 1 | 1 |
$32.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
17 | 1143582 | Clamp, Hose Adjustable (3/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1153693 | Foam, Resonator - Top | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 1153694 | Foam, Resonator - Bottom | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
20 | 1153699 | Foam, Soundbox - Ceiling | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
21 | 1153707 | Tube, Resonator Inlet Preformed | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
22 | 1153692 | NLA - Tube, Inlet Silencer | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
23 | 1153788 | Resonator, Inlet | 1 | 1 |
$69.00 |
Create/add to WishlistCreate/add to Wishlist |
|
24 | 1153708 | NLA - Tube, Resonator Outlet Preformed | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
25 | 1143445 | NLA - Soundbox, Vertical | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
26 | 1143489 | Elbow, Male Flare | 1 | 1 |
$16.00 |
Create/add to WishlistCreate/add to Wishlist |
|
27 | 60127442 | Screw, Slot Hex (10-16) | 1 | 2 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | After the date 01/31/11. This number is the replacement number for 1006525 and 2001694. |
B | No longer available. Use 1143557 as its replacement. |
C | When ordering this part, you must also order 1143489. |
