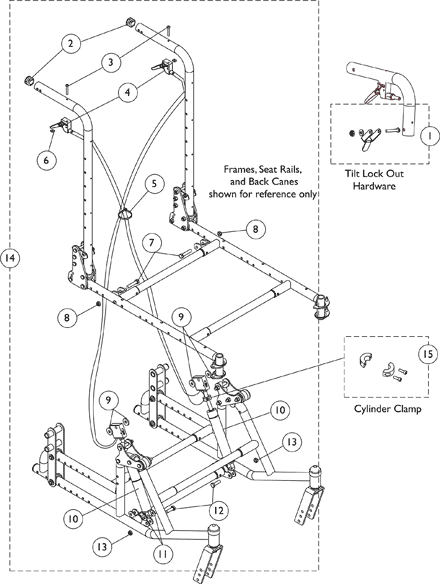

Tilt Hardware
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 |
1118578
|
Kit, Tilt Lock Out Lever with Hardware | 1 | 1 |
$15.00 |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 1029501 | Plug Button, Black (1") | 1 | 2 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1163311 | Screw, Socket Button Head (10-32 x 1-1/4") | 1 | 2 |
Create/add to WishlistCreate/add to Wishlist |
||
4 | 1078451 | Release Handle Assembly w/ Cable | 1 | 2 |
$38.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1021260 | Tie Wrap (5-5/8" L) | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1086207 | Nut, Square (#10-32) | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1028514 | Screw, Hex Head (5/16-24 x 1-1/2") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1025730 | Locknut (5/16-24) | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1016301 | Washer, Nylon (5/16 x 7/8 x 1/8") | 1 | 4 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1075255 | Cylinder, Gas w/ Release Cable - Right | 1 | 1 |
$210.00 |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1075256 | Cylinder, Gas w/ Release Cable - Left | 1 | 1 |
$210.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1074133 | Washer, Steel (5/16 x 3/4 x 1/16") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1003548 | Screw, Hex Head (5/16-18 x 1") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1028769 | Locknut (5/16-18) | 1 | 2 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1121581 | Kit, Tilt Hardware | 1 | 1 |
$454.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
15 | 1073707 | Clamp, Cylinder with Screws | 1 | 2 |
$12.00 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 2-13 |
