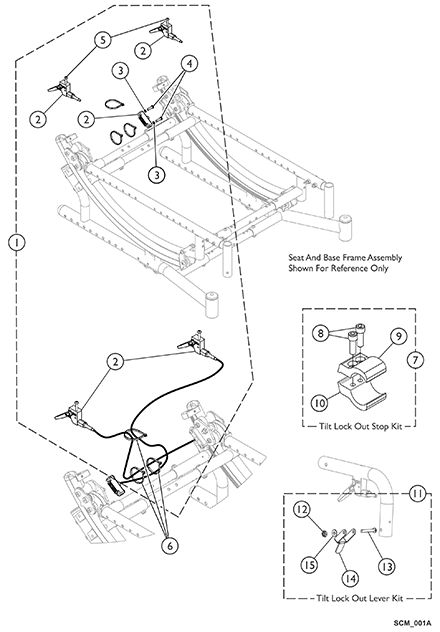

Tilt Hardware - Hand Release

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1151366

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Tilt Release Cable Assembly	1	2
3	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	4
4	Screw, Socket Button Head (#10-32 x 3/4")	1	4
5	Screw, Socket Button Head (10-32 x 1-1/4")	1	2
22	Tilt Release Cable Assembly	1	2
23	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	4
24	Screw, Socket Button Head (#10-32 x 3/4")	1	4
25	Screw, Socket Button Head (10-32 x 1-1/4")	1	2

Kit, Tilt Cable Release w/ Hardware (Pair)

$145.00

Create/add to Wishlist

1095503

NLA - Package, Tie Wrap (5-5/8" L)

N/A

Create/add to Wishlist

1153995

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Screw, Socket Head (1/4-20 x 1/2")	1	1
9	Collar, Lockout Tilt, Black	1	1
10	Collar, Lockout Tilt, Threaded, Black	1	1

Kit, Tilt Lockout Collar, Black

$32.00

Create/add to Wishlist

1118578

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	NLA - Nut, Hex Lock (#6-32)	1	1
	NLA - Screw, Phillips Pan Head (#6-32 x 7/8")	1	1
	NLA - Lever, Lock Out Tilt, Silver Vein	1	1
	NLA - Washer, Flat (5/32 x 3/8 x 1/32")	1	1
12	NLA - Nut, Hex Lock (#6-32)	1	1
13	NLA - Screw, Phillips Pan Head (#6-32 x 7/8")	1	1
14	NLA - Lever, Lock Out Tilt, Silver Vein	1	1
15	NLA - Washer, Flat (5/32 x 3/8 x 1/32")	1	1
35	NLA - Nut, Hex Lock (#6-32)	1	1
36	NLA - Screw, Phillips Pan Head (#6-32 x 7/8")	1	1
37	NLA - Lever, Lock Out Tilt, Silver Vein	1	1
38	NLA - Washer, Flat (5/32 x 3/8 x 1/32")	1	1
31	NLA - Nut, Hex Lock (#6-32)	1	1
32	NLA - Screw, Phillips Pan Head (#6-32 x 7/8")	1	1
33	NLA - Lever, Lock Out Tilt, Silver Vein	1	1
34	NLA - Washer, Flat (5/32 x 3/8 x 1/32")	1	1

Kit, Tilt Lock Out Lever with Hardware

$15.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-5
B	Includes items 8-10. Chair requires 2 ea. of item 7. (Option TLC)
C	Includes items 12-15. Chair requires 2 ea. of item 11. (Option RLL)

Catalog Literature

Parts Books for Solara® 3G Spree 3G
