Front Riggings - Footrest Supports, (Hemi) - PHW93

Print this page

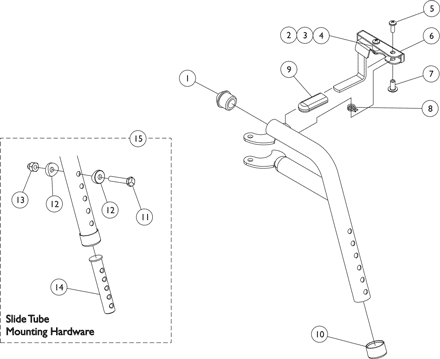

PHW93 (Hemi) Footrest Supports

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1020719	Anti-Rattle, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1025716	Screw, Phillips Pan Head (#10-32 x 11/16")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	47565X057	Bushing (7/32 x 3/8 x 11/32")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1025735	Locknut (#10-32)	1	1	$3.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1026114	Screw, Phillips Pan Head (#10-32 x 1/2")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1114749	NLA - Handle, Release, Black - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1114750	NLA - Handle, Release, Black - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1028846	NLA - Rivnut (#10-32)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1028707	Spring, Release - Right	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1028708	Spring, Release - Left	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1006490	Tip, Plastic, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	15680X012	Collar, Anti-Rattle (7/8")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1070759	Screw, Hex Head (1/4-20 x 1-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1026099	Spacer, Coved (1/4 x 11/16 x 1/2")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1044214	Nut, Hex with Nylon Cap (1/4-20)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1020534	Insert, Threaded	1	1	$9.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1074143	Kit, Slide Tube Mounting Hardware	1	1	$21.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1114755	Footrest Support Assembly, Hemi, Black - Right	1	1	$94.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1114756	Footrest Support Assembly, Hemi, Black - Left	1	1	$94.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-4
B	Not Shown
C	As of 8/15/03, the Threaded Insert was revised from 3 to 5 Holes. Threaded Insert is Backward Compatible and does not require ordering in Pairs.

Catalog Literature

Parts Books for Pronto® M50™/ M51™ with SureStep® (After 1/19/05) Pronto® M61™ with SureStep®
