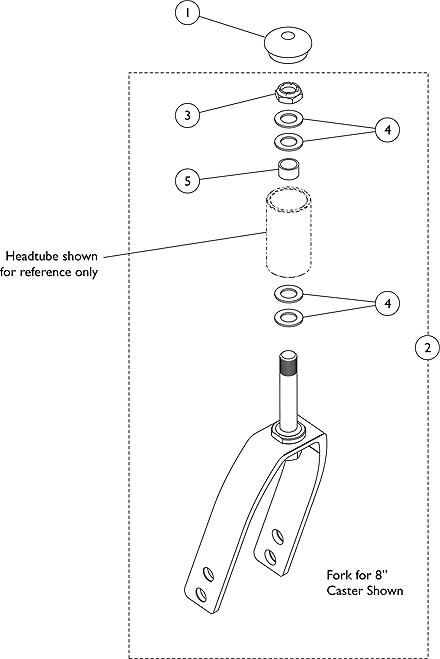

Forks & Hardware (Before 7/1/11)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1088523

Plug Button, Head Tube, Black

$16.00

Create/add to Wishlist

1118545

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Spacer (1/2 x 5/8 x 3/8")	1	1
5	Stem, Fork, Short	1	1
6	Locknut (1/2-20)	1	2
7	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
8	NLA - Fork, Caster	1	1
	NLA - Fork, Caster	1	1
	Stem, Fork, Short	1	1
2	Locknut (1/2-20)	1	2
3	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
4	Spacer (1/2 x 5/8 x 3/8")	1	1
	NLA - Fork, Caster	1	1
	Stem, Fork, Short	1	1
2	Locknut (1/2-20)	1	2
3	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
4	Spacer (1/2 x 5/8 x 3/8")	1	1
	NLA - Fork, Caster	1	1
	Stem, Fork, Short	1	1
3	Locknut (1/2-20)	1	2
4	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
5	Spacer (1/2 x 5/8 x 3/8")	1	1
	NLA - Fork, Caster	1	1
	Stem, Fork, Short	1	1
2	Locknut (1/2-20)	1	2
3	Washer, Plain (1/2 x 7/8 x 1/16)	1	6
4	Spacer (1/2 x 5/8 x 3/8")	1	1

Kit, Fork (5") w/ Short Stem

$95.00

A ,B

Create/add to Wishlist

1118546

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Fork, Caster	1	1
	Stem, Fork, Short	1	1
2	Locknut (1/2-20)	1	2
3	Washer (1/2 x 7/8 x 3/64")	1	6
4	Spacer (1/2 x 5/8 x 3/8")	1	1
	Fork, Caster	1	1
	Stem, Fork, Short	1	1
2	Locknut (1/2-20)	1	2
3	Washer (1/2 x 7/8 x 3/64")	1	6
4	Spacer (1/2 x 5/8 x 3/8")	1	1
	Stem, Fork, Short	1	1
2	Locknut (1/2-20)	1	2
3	Washer (1/2 x 7/8 x 3/64")	1	6
4	Spacer (1/2 x 5/8 x 3/8")	1	1
	Fork, Caster	1	1
	Stem, Fork, Short	1	1
3	Locknut (1/2-20)	1	2
4	Washer (1/2 x 7/8 x 3/64")	1	6
5	Spacer (1/2 x 5/8 x 3/8")	1	1
	Fork, Caster	1	1

Kit, Fork Assembly w/ Hardware (6 x 2" - 8" Caster)

$95.00

A ,C

Create/add to Wishlist

1025737

Locknut (1/2-20)

$7.20

Create/add to Wishlist

1026174

Washer (1/2 x 7/8 x 3/64")

$9.00

Create/add to Wishlist

1111931

Spacer (1/2 x 5/8 x 3/8")

$10.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes pre-assembled Fork and Stem in addition to Head Tube mounting hardware items 3, 4, and 5.
B	Used with 4, 5, or 6 x 1 inch Casters. See Owner's Manual for Fork and Caster seat to floor (STF) combinations.
C	Used with 6 x 2, or 8 inch Casters. See Owner's Manual for Fork and Caster seat to floor (STF) combination.

Catalog Literature

Parts Books for Solara® 2G Spree GT™
