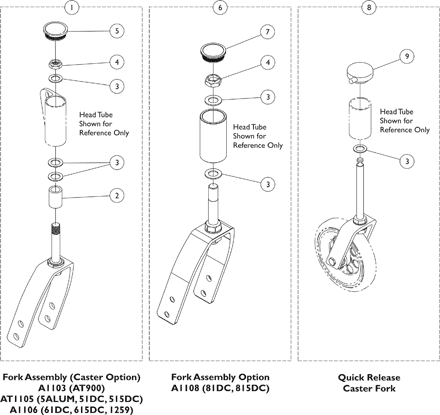

Forks and Hardware (After 6/29/11)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1038353

Plug Button, Headtube, Black

$9.00

Create/add to Wishlist

1066397

NLA - Kit, Quick Release Caster Fork -6" Fork for 3-7/16" Offset Caster Headtube

N/A

Create/add to Wishlist

1042044

NLA - Cap, Head Tube, Quick Release Caster, Black

N/A

Create/add to Wishlist

See Chart

Added to Cart

Caster Option	Fork Style	Spacer Size	Seat to Floor Dimension	Part Number (Pair)
AT900	A1103 (3", 1 Hole)	ASP00	15-1/4", 16-1/2"	1065623 MSRP: $75.00
AT900	A1103 (3", 1 Hole)	ASP01	16", 17-1/4"	1065624 MSRP: $75.00
AT900	A1103 (3", 1 Hole)	ASP02	17-1/4", 18-1/2"	1065625
AT900	A1105 (5", 3 Hole)	ASP00	17-1/2", 18-3/4"	1065626 MSRP: $78.00
AT900	A1105 (5", 3 Hole)	ASP01	18-1/2", 19-3/4"	1065627 MSRP: $78.00
AT900	A1106 (6", 3 Hole)	ASP00	17-1/4", 18-1/2"	1065628 MSRP: $78.00
51DC	A1103 (3", 1 Hole)	ASP00	16, 17-1/4"	1065623 MSRP: $75.00
51DC	A1103 (3", 1 Hole)	ASP01	16-3/4, 18" 18-1/2, 19-3/4"	1065624 MSRP: $75.00
51DC	A1103 (3", 1 Hole)	ASP02	18, 19-1/4"	1065625
51DC	A1105 (5", 3 Hole)	ASP00	17-1/2", 18-3/4"	1065626 MSRP: $78.00
51DC	A1105 (5", 3 Hole)	ASP01	18-1/2", 19-1/4"	1065627 MSRP: $78.00
51DC	A1106 (6", 3 Hole)	ASP00	16-1/2", 17-1/4" 17-3/4", 18" 18-1/2", 19-1/4"	1065628 MSRP: $78.00
1259 61DC 615DC	A1108 (8", 2 Hole) A1108 (8", 2 Hole) A1108 (8", 2 Hole)	ASP00	18, 19, 19-1/4, 20-1/4" 18-3/4, 19-3/4, 20, 21" 19, 20, 20-1/4, 21-1/4"	1065629 MSRP: $78.00

Create/add to Wishlist

#1 Fork and Stem Assembly w/ Hardware (3, 5, and 6" Caster)

N/A

See Chart

Added to Cart

Caster Option		Fork Style		Spacer Size		Seat to Floor Dimension		Part Number
81DC		A1108 (8", 2 Hole)		ASP00		18-3/4", 19-3/4" 20", 21"		1174527- NLA
815DC		A1108 (8", 2 Hole)		ASP00		19", 20" 20-1/4", 21-1/4"		1174527- NLA

Create/add to Wishlist

#6 Fork and Stem Assembly w/ Hardware (8" Caster)

N/A

Assembly Part Notes

Note Code	Definition
A	Includes Fork and Stem plus items 2 - 4.
B	Includes Fork and Stem plus Head Tube mounting hardware items 3 and 4.
C	Available on 6" casters only. Includes Fork and Stem plus items 3 and 9.
