Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1168685

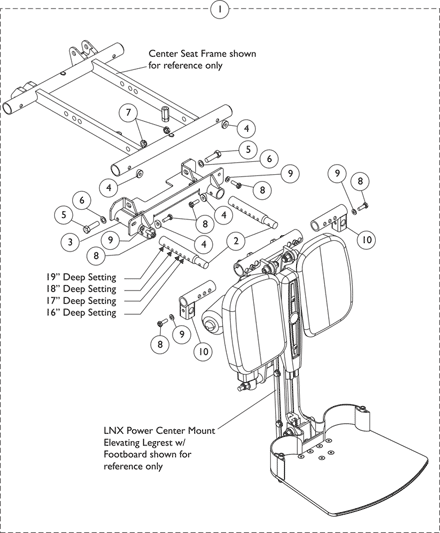

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bar, Extension, Power Center Mount (16 - 19" D)	1	2
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4
10	Bracket, LNX/LNX-L Mounting, Black - Right	1	1
10	Bracket, LNX/LNX-L Mounting, Black - Left	1	1
2	Bar, Extension, Power Center Mount (16 - 19" D)	1	2
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4
10	Bracket, LNX/LNX-L Mounting, Black - Right	1	1
10	Bracket, LNX/LNX-L Mounting, Black - Left	1	1

Kit, LNX/LNX-L Power Center Mount Elevating Legrest Mounting Hardware (16" - 19" D)

$268.00

1168686

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bar, Extension, Power Center Mount (19 - 20" D)	1	2
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4
10	Bracket, LNX/LNX-L Mounting, Black - Right	1	1
10	Bracket, LNX/LNX-L Mounting, Black - Left	1	1
2	Bar, Extension, Power Center Mount (19 - 20" D)	1	2
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4
10	Bracket, LNX/LNX-L Mounting, Black - Right	1	1
10	Bracket, LNX/LNX-L Mounting, Black - Left	1	1

Kit, LNX/LNX-L Power Center Mount Elevating Legrest Mounting Hardware (19" - 20" D)

$280.00

1168687

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4
10	Bracket, LNX/LNX-L Mounting, Black - Right	1	1
10	Bracket, LNX/LNX-L Mounting, Black - Left	1	1
2	Bar, Extension, Power Center Mount (21-22" D)	1	2
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
2	Bar, Extension, Power Center Mount (21-22" D)	1	2
3	Bracket, Rear, Power Center Mount	1	1
4	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2
6	Washer, Plain (1/4 x 9/16 x 1/16")	1	2
7	Locknut, Low Profile (3/8-16)	1	2
8	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	6
9	Washer (1/4 x 1/2 x 1/16")	1	4
10	Bracket, LNX/LNX-L Mounting, Black - Right	1	1
10	Bracket, LNX/LNX-L Mounting, Black - Left	1	1

Kit, LNX/LNX-L Power Center Mount Elevating Legrest Mounting Hardware (21" - 22" D)

$285.00

Note Code	Definition
A	Includes items 2-10
