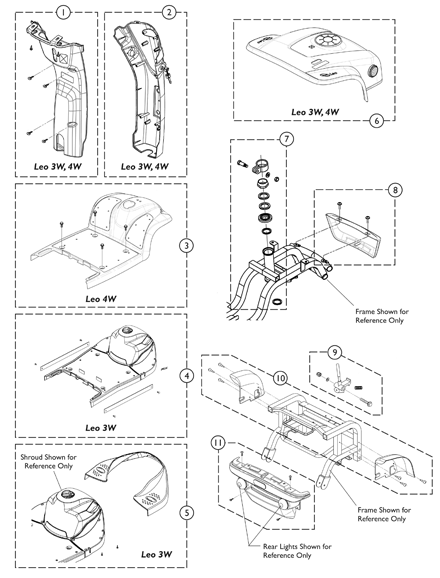

Shrouds
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1508500 | Shroud, Tiller, Front, Onyx Blue | 1 | 1 | F ,K |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 1148175 | Shroud, Tiller, Front, Onyx Blue (Leo 3W, 4W) | 1 | 1 |
$192.00 |
G ,K |
Create/add to WishlistCreate/add to Wishlist |
2 | 1505858 | Shroud, Tiller, Front, Moonstone Silver | 1 | 1 |
$192.00 |
K |
Create/add to WishlistCreate/add to Wishlist |
3 | 1164842 | Shroud, Main w/ Hardware, Blue (Leo 4W) | 1 | 1 |
$566.00 |
B ,F ,M |
Create/add to WishlistCreate/add to Wishlist |
3 | 1148174 | Shroud, Main w/ Hardware, Onyx Blue (Leo 4W) | 1 | 1 |
$566.00 |
G ,M |
Create/add to WishlistCreate/add to Wishlist |
3 | 1164843 | Shroud, Main w/ Hardware, Silver (Leo 4W) | 1 | 1 |
$566.00 |
B ,M |
Create/add to WishlistCreate/add to Wishlist |
4 | 1547585 | Shroud, Front, Onyx Blue (Leo 3W) | 1 | 1 | L |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1547584 | Shroud, Front, Silver (Leo 3W) | 1 | 1 |
$280.00 |
L |
Create/add to WishlistCreate/add to Wishlist |
5 | 1547590 | Cover, Front Bumper w/ Hardware (Leo 3W) | 1 | 1 |
$63.00 |
J ,L |
Create/add to WishlistCreate/add to Wishlist |
6 | 1165105 | Shroud, Rear, Blue (Leo 3W, 4W) | 1 | 1 |
$254.00 |
F ,M |
Create/add to WishlistCreate/add to Wishlist |
6 | 1148173 | Shroud, Rear, Onyx Blue (Leo 3W, 4W) | 1 | 1 |
$606.00 |
G ,L ,M |
Create/add to WishlistCreate/add to Wishlist |
6 | 1165104 | Shroud, Rear, Silver (Leo 3W, 4W) | 1 | 1 |
$606.00 |
M |
Create/add to WishlistCreate/add to Wishlist |
7 | 1547591 | Kit, Bearings, Tiller Column | 1 | 1 |
$18.00 |
K |
Create/add to WishlistCreate/add to Wishlist |
8 | 1506187 | Bumper, Front w/ Hardware (Leo 4W) | 1 | 1 |
$14.00 |
E ,M |
Create/add to WishlistCreate/add to Wishlist |
9 | 1506277 | Release Lever Assembly w/ Hardware | 1 | 1 |
$45.00 |
D ,K |
Create/add to WishlistCreate/add to Wishlist |
10 | 1164836 | Fender w/ Hardware - Right/Left | 1 | 1 | A ,K |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1506312 | Bumper, Rear w/ Hardware | 1 | 1 | C ,K |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes (6) screws. |
B | Includes (4) bolts. Invacare recommends replacing mats and rivets when replacing a Main Shroud. See category titled, "Baskets, Floor Mats & Reflectors" to order. |
C | Includes (4) screws. |
D | Includes (1) bolt, washer, spring and nut cap. |
E | Includes (2) bolts and (3) screws. |
F | For scooters manufactured before serial number 10DCT000135. Four Wheel (4W) Scooters Only. |
G | For scooters manufactured after serial number 10DCT000134. Three (3W) and Four (4W) Scooters. |
H | Includes Retainer (2), Steering Race, Tooth Washer, Plain Washer, Locknut, and Padlock. |
J | Includes Bumper Cover and (8) Screws. |
K | Used with the Three Wheel and Four Wheel Scooters. |
L | Used with the Three Wheel Scooter. |
M | Used with the Four Wheel Scooter. |
