EQUIPMENT US Site

1

1168901

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Screw, Phillips Pan Head Tap (#10-32 x 3/8")	1	2
5	Screw, Phillips Pan Head SEMS w/ Patch (M3 x .5 x 10mm)	1	2
2	Screw, Thumb w/ Shoulder (M9.5 x 24.13mm, M6 x 1)	1	4
3	Screw, Thumb (M5 x .8 x 12mm)	1	4
5	Screw, Phillips Pan Head SEMS w/ Patch (M3 x .5 x 10mm)	1	2
4	Screw, Phillips Pan Head Tap (#10-32 x 3/8")	1	2
2	Screw, Thumb w/ Shoulder (M9.5 x 24.13mm, M6 x 1)	1	4
3	Screw, Thumb (M5 x .8 x 12mm)	1	4

NLA - Kit, Shrouds and Bezel Mounting Hardware

1

N/A

A

Create/add to Wishlist

7

1167400

NLA - Decal, FDX Model, Swing Arm

1

2

N/A

Create/add to Wishlist

8

1168380

NLA - Decal, Invacare Logo, Fender - Right

1

N/A

Create/add to Wishlist

8

1168381

NLA - Decal, Invacare Logo, Fender - Left

1

N/A

Create/add to Wishlist

9

1165607

Bezel, Lighting - Right

1

$36.00

Create/add to Wishlist

9

1165608

Bezel, Lighting - Left

1

$36.00

Create/add to Wishlist

10

1168998

Package, Lens Reflective Insert

4

1

$17.00

Create/add to Wishlist

11

60102804

Kit, Cover, Lighting Bezel Lens - Right

1

$45.00

Create/add to Wishlist

11

60102805

Kit, Cover, Lighting Bezel Lens - Left

1

$45.00

Create/add to Wishlist

12

See Chart

Added to Cart

Description		Wet Black (24P)		Artic White (143P)		Electric Silver (147P)		Electric Red (61P)		Electric Blue (62P)
Rear Shroud w/ Decals, Elevate		Note-A 1173514- NLA		Note-A 1173515- NLA		Note-A ,B 1173516 MSRP: $138.00		Note-A 1173517		Note-A 1173518
Rear Shroud w/ Decals, Non-Elevate		Note-A 1173519 MSRP: $138.00		Note-A 1173520 MSRP: $138.00		Note-A ,B 1173521- NLA		Note-A 1173522 MSRP: $138.00		Note-A 1173523 MSRP: $138.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	The Controller is also covered by the Rear Shroud. Shroud includes items 6, 15 and 16.
B	As of 11/2/11 Silver Metallic (60P) was replaced with Electric Silver (147P). Wheelchairs manufactured before 11/2/11 must order the Electric Silver (147P) Shroud and Hardware Conversion Kit dated Before 7/11/11.

Item #12 Colored Rear Shroud

N/A

Create/add to Wishlist

13

See Chart

Added to Cart

Description		Wet Black (24P)		Artic White (143P)		Electric Silver (147P)		Electric Red (61P)		Electric Blue (62P)
Swing Arm Shroud w/ Decal - Right		Note-A 1173494 MSRP: $52.00		Note-A 1173495 MSRP: $52.00		Note-A ,B 1173496- NLA		Note-A 1173497- NLA		Note-A 1173498- NLA
Swing Arm Shroud w/ Decal - Left		Note-A 1173499 MSRP: $52.00		Note-A 1173500 MSRP: $52.00		Note-A ,B 1173501		Note-A 1173502 MSRP: $52.00		Note-A 1173503 MSRP: $52.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Shroud includes item #7 Decal.
B	As of 11/2/11 Silver Metallic (60P) was replaced with Electric Silver (147P). Wheelchairs manufactured before 11/2/11 must order the Electric Silver (147P) Shroud and Hardware Conversion Kit dated Before 7/11/11.

Item #13 Colored Swing Arm Shroud

N/A

Create/add to Wishlist

14

See Chart

Added to Cart

Description		Wet Black (24P)		Artic White (143P)		Electric Silver (147P)		Electric Red (61P)		Electric Blue (62P)
Fender Shroud w/ Decal - Right		Note-A 1173504 MSRP: $142.00		Note-A 1173505- NLA		Note-A ,B 1173506		Note-A 1173507 MSRP: $142.00		Note-A 1173508
Fender Shroud w/ Decal - Left		Note-A 1173509 MSRP: $142.00		Note-A 1173510- NLA		Note-A ,B 1173511 MSRP: $142.00		Note-A 1173512		Note-A 1173513 MSRP: $142.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Shroud includes item #8 Decal only. Item #18 Decal is not included.
B	As of 11/2/11 Silver Metallic (60P) was replaced with Electric Silver (147P). Wheelchairs manufactured before 11/2/11 must order the Electric Silver (147P) Shroud and Hardware Conversion Kit dated Before 7/11/11.

Item #14 Colored Fender Shroud

N/A

Create/add to Wishlist

15

See Chart

Added to Cart

Description		Wet Black (24P)		Artic White (143P)		Electric Silver (147P)		Electric Red (61P)		Electric Blue (62P)
Front Shroud and Bracket Assembly, Elevate		Note-A 1173482- NLA		Note-A 1173483- NLA		Note-A ,B 1173484		Note-A 1173485		Note-A 1173486 MSRP: $221.00
Front Shroud and Bracket Assembly, Non-Elevate		Note-A 1173489 MSRP: $181.00		Note-A 1173490		Note-A ,B 1173491		Note-A 1173492 MSRP: $181.00		Note-A 1173493

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Item #15 is sold as a complete assembly only.
B	As of 11/2/11 Silver Metallic (60P) was replaced with Electric Silver (147P). Wheelchairs manufactured before 11/2/11 must order the Electric Silver (147P) Shroud and Hardware Conversion Kit dated Before 7/11/11.

Item #15 Colored Front Shroud and Bracket Assembly

N/A

Create/add to Wishlist

16

1119281

NLA - Plate, Name, Patent Numbers

1

N/A

Create/add to Wishlist

17

1035900

Decal, Transportation

1

$7.00

Create/add to Wishlist

18

1079203

Decal, Warning Pinch Point

1

2

$7.00

Create/add to Wishlist

19

1168979

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
27	Bracket, Shroud, Black - Right	1	1
22	Screw, Phillips Pan Head Tap (#10-32 x 3/8")	1	2
28	NLA - Fastener, Hook with Adhesive Back (1" W x 2" L)	1	1
29	Screw, Phillips Pan Head Tap (#10-32 x 3/8")	1	2
20	Bracket, Shroud, Black - Right	1	1
21	NLA - Fastener, Hook with Adhesive Back (1" W x 2" L)	1	1

Kit, Shroud Bracket and Hardware - Right

1

$18.00

B

Create/add to Wishlist

19

1168980

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
27	Bracket, Shroud, Black - Left	1	1
28	NLA - Fastener, Hook with Adhesive Back (1" W x 2" L)	1	1
29	Screw, Phillips Pan Head Tap (#10-32 x 3/8")	1	2
22	Screw, Phillips Pan Head Tap (#10-32 x 3/8")	1	2
20	Bracket, Shroud, Black - Left	1	1
21	NLA - Fastener, Hook with Adhesive Back (1" W x 2" L)	1	1

Kit, Shroud Bracket and Hardware - Left

1

$18.00

B

Note Code	Definition
A	Includes items 2-5
B	Includes items 20-22

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

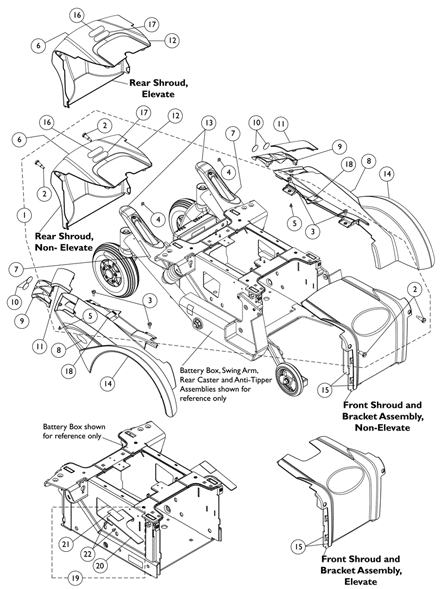

Shrouds & Hardware - w/o Lights After 07/10/11
