EQUIPMENT US Site

3

1173765

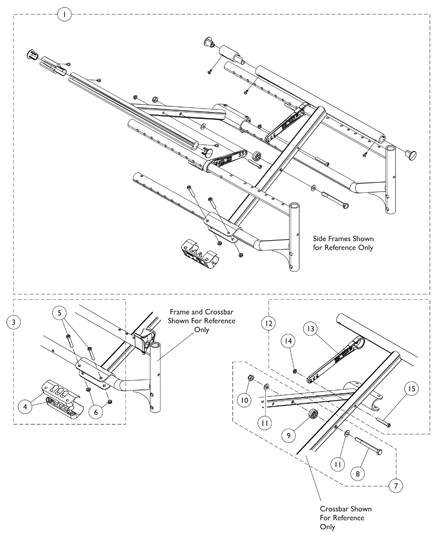

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Clamp, Saddle, Crossbar	1	2
3	Clamp, Saddle	1	2
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
3	Clamp, Saddle, Crossbar	1	1
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
5	NLA - Locknut (M6 x 1)	1	2
3	Clamp, Saddle, Crossbar	1	2
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Locknut (M6 x 1)	1	4
3	Clamp, Saddle	1	2
5	NLA - Locknut (M6 x 1)	1	4
6	NLA - Locknut (M6 x 1)	1	4
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Locknut (M6 x 1)	1	4

Kit, Saddle Clamp w/ Hardware (Pair)

1

$20.00

B

Create/add to Wishlist

7

1173771

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	NLA - Washer (M8 x 16mm x 1.5mm)	1	4
11	NLA - Locknut (M8 x 1.25)	1	2
7	Washer, Plastic	1	2
8	NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	2
9	NLA - Washer (M8 x 16mm x 1.5mm)	1	4
10	NLA - Locknut (M8 x 1.25)	1	2
8	Washer, Plastic	1	2
9	NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	2

NLA - Kit, Crossbrace Bolt w/ Hardware (Pair)

1

C

Create/add to Wishlist

12

1173779

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
12	NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
13	NLA - Locknut (M6 x 1)	1	2
14	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
15	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
14	NLA - Locknut (M6 x 1)	1	2

NLA - Kit, Pivot Link w/ Hardware (15 - 17" W) (Pair)

1

N/A

D

Create/add to Wishlist

12

1173767

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	NLA - Locknut (M6 x 1)	1	2
12	Link, Pivot, Crossbrace (18 - 20" W)	1	2
13	NLA - Locknut (M6 x 1)	1	2
14	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
13	Link, Pivot, Crossbrace (18 - 20" W)	1	2
15	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2

NLA - Kit, Pivot Link w/ Hardware (18 - 20" W) (Pair)

1

N/A

D

Create/add to Wishlist

See Chart

Added to Cart

Seat Depth

15" Wide

16" Wide

17" Wide

18" Wide

19" Wide

20" Wide

15" Deep

1172249

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	2
Clamp, Saddle	1	2
Crossbar - Left (15" W x 15" D)	1	1
Crossbar - Right (15" W x 15" D)	1	1

1172250

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	2
Clamp, Saddle	1	2
Crossbar - Left (16" W x 15" D)	1	1
Crossbar - Right (16" W x 15" D)	1	1

1172251

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	2
Clamp, Saddle	1	2
Crossbar - Left (17" W x 15" D)	1	1
Crossbar - Right (17" W x 15" D)	1	1

1172252

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	2
Clamp, Saddle	1	2
Crossbar - Right (18" W x 15" D)	1	1
Crossbar - Left (18" W x 15" D)	1	1

1172253

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	2
Clamp, Saddle	1	2
Crossbar - Left (19" W x 15" D)	1	1
Crossbar - Right (19" W x 15" D)	1	1

1172254

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	2
Clamp, Saddle	1	2
Crossbar - Left (20" W x 15" D)	1	1
Crossbar - Right (20" W x 15" D)	1	1

16" Deep

1530032

MSRP: $433.00

1530033

MSRP: $433.00

1530034

MSRP: $392.00

1530035

1530036

MSRP: $433.00

1530037

MSRP: $433.00

17" Deep

1168733

1168734

MSRP: $433.00

1168735

MSRP: $433.00

1168736

1168737

1168738

18" Deep

1530038

1530052

MSRP: $433.00

1530053

1530054

MSRP: $433.00

1530055

MSRP: $433.00

1530056

MSRP: $433.00

19" Deep

1172255

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (15" W x 18" D)	1	2

1172256

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (17" W x 18" D)	1	2

1172257

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (17" W x 18" D)	1	2

MSRP: $135.00

1172258

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
Crossbrace, Black (18" W x 18" D)	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2

MSRP: $135.00

1172259

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (19" W x 18" D)	1	2

1172260

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
Crossbrace, Black (20" W x 18" D)	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2

MSRP: $128.00

20" Deep

1172261

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
Extension, Seat Rail (2")	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (15" W x 18" D)	1	2

1172262

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
Extension, Seat Rail (2")	1	2
Crossbrace, Black (16" W x 18 D)	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2

1172263

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
Extension, Seat Rail (2")	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (17" W x 18" D)	1	2

MSRP: $135.00

1172264

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
Extension, Seat Rail (2")	1	2
Crossbrace, Black (18" W x 18" D)	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2

MSRP: $135.00

1172265

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
Extension, Seat Rail (2")	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (19" W x 18" D)	1	2

1172266

Part/Kit Description	Qty/Pkg	Qty/Asbly
Extension, Seat Rail (2")	1	2
Washer, Plastic	1	1
Crossbrace, Black (20" W x 18" D)	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2

MSRP: $135.00

Create/add to Wishlist

#1 Crossbrace Assembly w/ Hardware - Fixed Depth

N/A

Note Code	Definition
A	Includes items 3 - 19.
B	Includes items 4 - 6.
C	Includes items 8 - 11.
D	Includes items 13 - 15.

Crossbrace - Conventional Fixed Depth (FXDDPTH)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Crossbrace - Conventional Fixed Depth (FXDDPTH)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
