Crossbrace - Conventional Adjustable Depth (ADJDPTH)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1173766

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Clamp, Saddle, Crossbar	1	2
5	NLA - Locknut (M6 x 1)	1	4
4	Screw (M6 x 45mm)	1	4
5	NLA - Locknut (M6 x 1)	1	4
3	Clamp, Saddle, Crossbar	1	2
4	Screw (M6 x 45mm)	1	4
5	NLA - Locknut (M6 x 1)	1	4
3	Clamp, Saddle, Crossbar	1	1
4	Screw (M6 x 45mm)	1	2
5	NLA - Locknut (M6 x 1)	1	2
6	NLA - Locknut (M6 x 1)	1	2
4	Screw (M6 x 45mm)	1	4
4	Clamp, Saddle, Crossbar	1	1
5	Screw (M6 x 45mm)	1	2
3	Clamp, Saddle, Crossbar	1	2

Kit, Saddle Clamp w/ Hardware (Pair)

Create/add to Wishlist

1173775

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Washer, Crossbrace	1	2
10	NLA - Locknut (M6 x 1)	1	4
7	Insert, Crossbrace	1	4
7	Insert, Crossbrace	1	4
8	Screw, Socket Head, Cap (M6 x 55mm, 12.9)	1	2
9	Washer, Crossbrace	1	2
10	NLA - Locknut (M6 x 1)	1	4
8	Screw, Socket Head, Cap (M6 x 55mm, 12.9)	1	2

Kit, Crossbrace Bolt w/ Hardware (Pair)

Create/add to Wishlist

1173768

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	NLA - Bag, Poly Zip-Lip (8-3/4" L x 6" W)	1	1
12	NLA - Locknut (M6 x 1)	1	2
14	NLA - Locknut (M6 x 1)	1	2
8	Link, Pivot, Crossbrace (18-20" W)	1	2
	Carton	1	1
13	Screw, Socket Head, Cap (M6 x 35mm)	1	2
	Carton	1	1
11	Screw, Socket Head, Cap (M6 x 35mm)	1	2
	Carton	1	1
10	NLA - Locknut (M6 x 1)	1	2
	NLA - Bag, Poly Zip-Lip (8-3/4" L x 6" W)	1	1
12	Link, Pivot, Crossbrace (18-20" W)	1	2
10	Link, Pivot, Crossbrace (18-20" W)	1	2
	NLA - Bag, Poly Zip-Lip (8-3/4" L x 6" W)	1	1
9	Screw, Socket Head, Cap (M6 x 35mm)	1	2

Kit, Pivot Link w/ Hardware (18 - 20" W) (Pair)

$23.00

Create/add to Wishlist

1173780

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	NLA - Locknut (M6 x 1)	1	2
12	Link, Pivot, Crossbrace (15-17" W)	1	2
13	Screw, Socket Head, Cap (M6 x 35mm)	1	2
14	NLA - Locknut (M6 x 1)	1	2
13	Screw, Socket Head, Cap (M6 x 35mm)	1	2
12	Link, Pivot, Crossbrace (15-17" W)	1	2

Kit, Pivot Link w/ Hardware (15 - 17" W) (Pair)

$23.00

Create/add to Wishlist

1172274

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	Extension, Seat Rail (1")	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
20	Rod, Upholstery (2")	1	2
22	Guide, Seat	1	2
25	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
	Instruction Sheet, Seat Rail Extensions	1	1
14	Extension, Seat Rail (2")	1	2
17	Cap, Extension, Seat Rail (1")	1	2
18	Rod, Upholstery (2")	1	2
19	Rod, Upholstery (1")	1	2
23	NLA - Locknut (M6 x 1)	1	2
18	NLA - Plug Button	1	2
18	NLA - Plug Button	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
16	Extension, Seat Rail (2")	1	2
17	Extension, Seat Rail (1")	1	2
18	NLA - Plug Button	1	2
19	Cap, Extension, Seat Rail (1")	1	2
20	Rod, Upholstery (2")	1	2
21	Rod, Upholstery (1")	1	2
22	Guide, Seat	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
25	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
27	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
19	Extension, Seat Rail (2")	1	2
20	Extension, Seat Rail (1")	1	2
21	NLA - Plug Button	1	2
22	Cap, Extension, Seat Rail (1")	1	2
23	Rod, Upholstery (2")	1	2
24	Rod, Upholstery (1")	1	2
25	Guide, Seat	1	2
26	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
28	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
19	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
20	NLA - Locknut (M6 x 1)	1	2
11	Extension, Seat Rail (2")	1	2
12	Extension, Seat Rail (1")	1	2
13	NLA - Plug Button	1	2
14	Cap, Extension, Seat Rail (1")	1	2
15	Rod, Upholstery (2")	1	2
16	Rod, Upholstery (1")	1	2
17	Guide, Seat	1	2
18	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
16	Extension, Seat Rail (2")	1	2
17	Extension, Seat Rail (1")	1	2
18	NLA - Plug Button	1	2
19	Cap, Extension, Seat Rail (1")	1	2
20	Rod, Upholstery (2")	1	2
21	Rod, Upholstery (1")	1	2
22	Guide, Seat	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
25	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
21	Rod, Upholstery (1")	1	2
16	Extension, Seat Rail (2")	1	2
21	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
22	Guide, Seat	1	2
20	Rod, Upholstery (2")	1	2
21	Rod, Upholstery (1")	1	2
15	Extension, Seat Rail (1")	1	2
22	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
19	Cap, Extension, Seat Rail (1")	1	2
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
25	NLA - Locknut (M6 x 1)	1	2
20	Guide, Seat	1	2
17	Extension, Seat Rail (1")	1	2
16	NLA - Plug Button	1	2
16	Extension, Seat Rail (2")	1	2
19	Cap, Extension, Seat Rail (1")	1	2

Kit, Seat Rail Extensions (16 - 18" D)

$150.00

Create/add to Wishlist

See Chart

Added to Cart

Seat Width		15" W		16" W		17" W		18" W		19" W		20" W
16 - 18" D (ADJDEPTH) (SDR1618)		1530032 MSRP: $433.00		1530033 MSRP: $433.00		1530034 MSRP: $392.00		1530035		1530036 MSRP: $433.00		1530037 MSRP: $433.00
18 - 20" D (ADJDPTH) (SDR1820)		1530038		1530032 MSRP: $433.00		1530053		1530054 MSRP: $433.00		1530055 MSRP: $433.00		1530056 MSRP: $433.00

Create/add to Wishlist

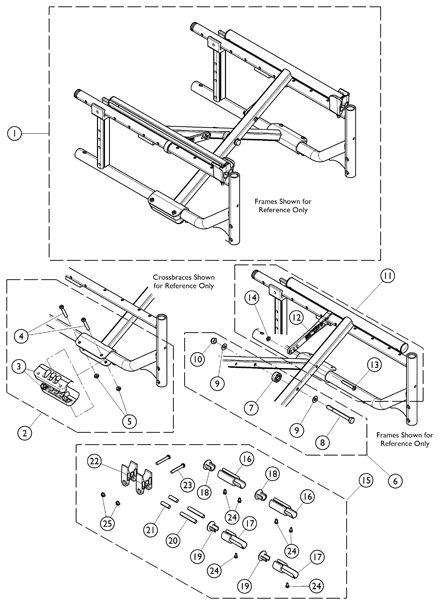

#1 Crossbrace Assembly w/ Hardware - Adjustable Depth

N/A

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 14.
B	Includes items 3 - 5.
C	Includes items 7 - 10.
D	Includes items 12 - 14.
E	Includes items 16 - 25.
