Shock Suspension Mounting Hardware

Print this page

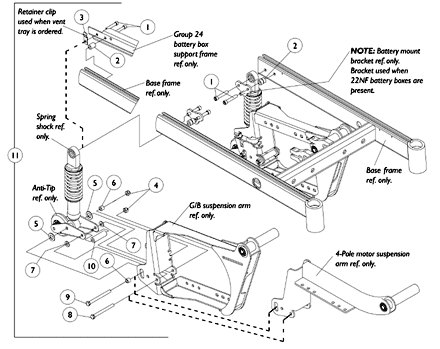

Shock Suspension Mounting Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1104845	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1104881	Spacer (3/8 x 5/8 x 3/4")	1	2	$10.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1039649	NLA - Spacer (3/8 x 5/8 x 25/32")	1	2	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1049550	NLA - Clip, Retainer	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1026158	Locknut (5/16-18)	1	4	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1031673	NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1104856	Spacer (5/16 x 1/2 x 3/8")	1	4	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1026032	Washer, Nylon (11/32 x 11/16 x 1/16")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1070397	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1105474	NLA - Screw, Hex Head (5/16-18 x 3-1/2)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1104847	Spacer (5/16 x 5/8 x 2")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1104868	NLA - Hardware, Shock Mounting	2	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1105546	NLA - Hardware, Shock Mounting	2	1	N/A	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1, 2 and 4-10 (Pair)
B	Includes items 1-10 (Pair)
C	For 22NF batteries and (Group 24 batteries without a vent tray)
D	Group 24 batteries with a vent tray that is ordered with a Tarsys 2G Powered Seating System. Does not apply to Formula CG Powered Seating System

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
