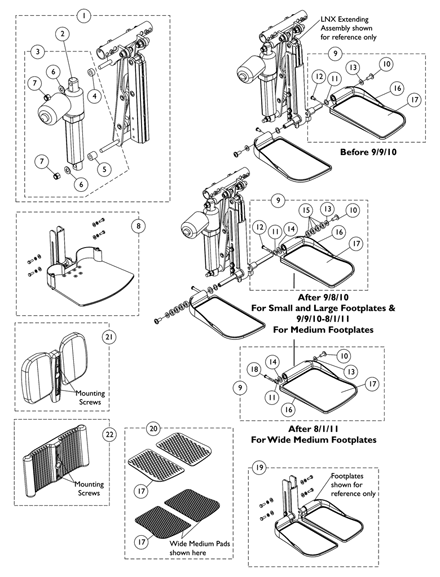

Footboard Assembly includes the Legrest Extension Bracket and Hardware to mount to the Extending Assembly. Individual components are non-saleable.
D
Item #19 only includes the Legrest Extension Bracket and Hardware to mount to the Extending Assembly. Individual Footplate Kits are ordered separately.
E
Includes a pair of item #17.
F
Includes both Calf Pads, Hardware and (2) each 1/4-20 x 7/8" Button Socket Head Screws to attach the Calf Pad Assembly. Individual components are non-saleable.
G
Includes the One Piece Calf Pad, Hardware and (2) each 1/4-20 x 3/4" Button Socket Head Screws to attach the One Piece Calf Pad Assembly. Individual components are non-saleable.
H
Legrest Extension Bracket was revised 9/9/10 to accommodate adjustable width hardware for the footplate. When Item #19 is ordered for chairs manufactured before 9/9/10, #9 Right and Left side Footplate Kits dated after 9/8/10 must be ordered as well.
H1
This applies to the Small, Large and (Medium from 9/9/10-8/1/11) Footplate Kits.
