Front Riggings - Swingaway Supports Type 75

Print this page

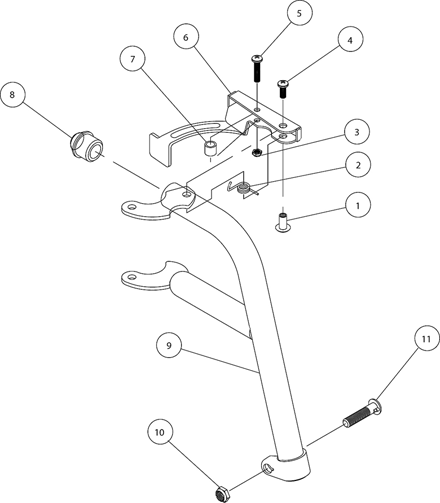

Front Rigging - Swingaway Supports Type 75

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
	1037848	NLA - Footrest Support Assembly, Adult, Black - Right	0	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1037849	NLA - Footrest Support Assembly, Adult, Black - Left	0	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1028846	NLA - Rivnut (#10-32)	1	0	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1028707	Spring, Release - Right	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1028708	Spring, Release - Left	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1025735	Locknut (#10-32)	1	0	$3.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1026114	Screw, Phillips Pan Head (#10-32 x 1/2")	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1025716	Screw, Phillips Pan Head (#10-32 x 11/16")	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1032721	Handle, Release, Spring - Right	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1032722	Handle, Release, Spring - Left	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1031884	NLA - Bushing, Black or Color Chairs (9/32 x 3/8 x 11/32")	1	0	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1020719	Anti-Rattle, Black	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1030288	NLA - Tube, Footrest Support, Adult, Black - Right	1	0	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1030289	NLA - Tube, Footrest Support, Adult, Black - Left	1	0	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1025730	Locknut (5/16-24)	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1026030	Bolt, Lug (5/16-24 x 1-3/8")	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	02303X107	NLA - Footrest Assembly, Adult, Black, 93BK - Right	1	0	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	02303X108	NLA - Footrest Assembly, Adult, Black, 93BK - Left	1	0	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes Items 1 thru 11.
B	No longer available as a service part individually. Must order a complete right and left side Footrest Assembly as a replacement. Order part numbers 02303X107 and 02303X108.
C	Not Shown. Includes a Footrest Support Assembly, Pivot/Slide Tube w/ Deluxe Aluminum Footplate (1450) and Heel Loop attached. Sold complete.

Catalog Literature

Parts Books for Concept 45 Tilt-N-Space
