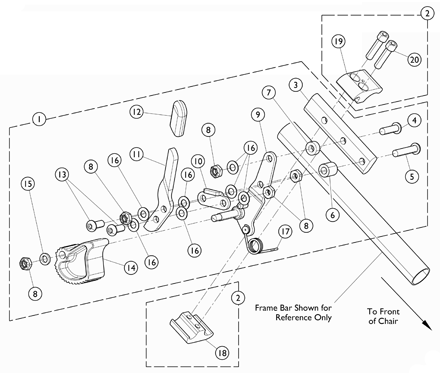

Wheel Locks - Hill Holder Assembly (A1598)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1039323

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Locknut (1/4-28)	1	5
11	NLA - Handle, Wheel Lock, Black - Right	1	1
12	Tip, Plastic, Black	1	1
1	Locknut (1/4-28)	1	5
2	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
3	NLA - Handle, Wheel Lock, Black - Right	1	1
4	Tip, Plastic, Black	1	1
5	NLA - Link, Stop, Black	1	1
6	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
7	NLA - Strap, Wheel Lock	1	1
8	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
9	NLA - Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
10	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
11	NLA - Bracket Assembly, Black - Right	1	1
12	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
13	NLA - Spring, Torsion - Right	1	1
14	Shoe, Wheel Lock	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
9	NLA - Bracket Assembly, Black - Right	1	1
5	NLA - Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
10	NLA - Link, Stop, Black	1	1
16	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
4	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
6	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
3	NLA - Strap, Wheel Lock	1	1
14	Shoe, Wheel Lock	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
7	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
13	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
17	NLA - Spring, Torsion - Right	1	1
1	Locknut (1/4-28)	1	5
2	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
3	NLA - Handle, Wheel Lock, Black - Right	1	1
4	Tip, Plastic, Black	1	1
5	NLA - Link, Stop, Black	1	1
6	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
7	NLA - Strap, Wheel Lock	1	1
8	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
9	NLA - Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
10	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
11	NLA - Bracket Assembly, Black - Right	1	1
12	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
13	NLA - Spring, Torsion - Right	1	1
14	Shoe, Wheel Lock	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1

NLA - Hill Holder Assembly w/ Hardware - Right

N/A

Create/add to Wishlist

1039324

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
12	Tip, Plastic, Black	1	1
8	Locknut (1/4-28)	1	5
11	NLA - Handle, Wheel Lock, Black - Left	1	1
1	Locknut (1/4-28)	1	5
2	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
3	NLA - Handle, Wheel Lock, Black - Left	1	1
4	Tip, Plastic, Black	1	1
5	NLA - Link, Stop, Black	1	1
6	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
7	NLA - Strap, Wheel Lock	1	1
8	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
9	NLA - Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
10	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
11	NLA - Bracket Assembly, Black - Left	1	1
12	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
13	NLA - Spring, Torsion - Left	1	1
14	Shoe, Wheel Lock	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
17	NLA - Spring, Torsion - Left	1	1
5	NLA - Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
7	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
6	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
14	Shoe, Wheel Lock	1	1
16	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
3	NLA - Strap, Wheel Lock	1	1
9	NLA - Bracket Assembly, Black - Left	1	1
10	NLA - Link, Stop, Black	1	1
13	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1
1	Locknut (1/4-28)	1	5
2	Screw, Socket Button Head (1/4-28 x 5/8")	1	2
3	NLA - Handle, Wheel Lock, Black - Left	1	1
4	Tip, Plastic, Black	1	1
5	NLA - Link, Stop, Black	1	1
6	NLA - Spacer (1/4 x 1/2 x 5/32")	1	1
7	NLA - Strap, Wheel Lock	1	1
8	NLA - Screw, Button Head Cap (1/4-28 x 7/8")	1	1
9	NLA - Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1
10	NLA - Spacer (1/4 x 1/2 x 1/2")	1	1
11	NLA - Bracket Assembly, Black - Left	1	1
12	Washer, Nylon (1/4 x 1/2 x 1/32")	1	7
13	NLA - Spring, Torsion - Left	1	1
14	Shoe, Wheel Lock	1	1
15	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1

NLA - Hill Holder Assembly w/ Hardware - Left

N/A

Create/add to Wishlist

1039343

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
20	Screw, Allen Head (1/4-20 x 1")	1	4
4	NLA - Clamp, Wheel Lock, Non-Threaded (7/8")	1	2
6	Screw, Allen Head (1/4-20 x 1")	1	4
4	NLA - Clamp, Wheel Lock, Non-Threaded (7/8")	1	2
5	Clamp, Wheel Lock, Threaded (7/8")	1	2
6	Screw, Allen Head (1/4-20 x 1")	1	4
18	Clamp, Wheel Lock, Threaded (7/8")	1	2
19	NLA - Clamp, Wheel Lock, Non-Threaded (7/8")	1	2
5	Clamp, Wheel Lock, Threaded (7/8")	1	2
	NLA - Clamp, Wheel Lock, Non-Threaded (7/8")	1	2
	Clamp, Wheel Lock, Threaded (7/8")	1	2
	Screw, Allen Head (1/4-20 x 1")	1	4
	NLA - Clamp, Wheel Lock, Non-Threaded (7/8")	1	2
	Clamp, Wheel Lock, Threaded (7/8")	1	2
	Screw, Allen Head (1/4-20 x 1")	1	4
	NLA - Clamp, Wheel Lock, Non-Threaded (7/8")	1	2
	Clamp, Wheel Lock, Threaded (7/8")	1	2
	Screw, Allen Head (1/4-20 x 1")	1	4

Kit, Clamp Wheel Lock Hardware (Pair)

$38.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3 - 17.
B	Includes items 18 - 20.

Catalog Literature

Parts Books for MyOn® United States Junior (FXMYONJR, GRMYONJR) Adult (MYONADLT, MYONTS, HDPG)
