1

1030979

Screw, Phillips Pan Head Tap (#10-32 x 3/4")

1

$10.00

Create/add to Wishlist

2

1022874

Bumper

1

$8.00

Create/add to Wishlist

3

1087698

NLA - Handle, Release, Chrome - Right

1

N/A

A

Create/add to Wishlist

3

1087699

NLA - Handle, Release, Chrome - Left

1

N/A

A

Create/add to Wishlist

4

47565X057

Bushing (7/32 x 3/8 x 11/32")

1

$8.00

Create/add to Wishlist

5

60279X003

Locknut (#10-32)

1

$8.00

Create/add to Wishlist

6

40163X008

Screw, Phillips Pan Head (#10-32 x 11/16")

1

$10.00

Create/add to Wishlist

7

1008935

Spring, Release - Right

1

$10.00

Create/add to Wishlist

7

1008936

Spring, Release - Left

1

$10.00

Create/add to Wishlist

8

67005X000

Rivnut (#10-32)

1

$10.00

Create/add to Wishlist

9

40163X002

Screw, Phillips Round Head (#10-32 x 1/2")

1

$10.00

Create/add to Wishlist

10

1114918

NLA - Legrest Support Tube Assembly, Hemi, Chrome - Right

1

N/A

Create/add to Wishlist

10

1114919

NLA - Legrest Support Tube Assembly, Hemi, Chrome - Left

1

N/A

D

Create/add to Wishlist

11

1027097

Plug Button, Black (3/4")

1

$7.50

Create/add to Wishlist

12

1040060

Tip, Plastic, Black

1

$8.00

Create/add to Wishlist

13

1037126

Handle, Release

1

$10.00

Create/add to Wishlist

14

1049527

Washer, Nylon (3/8 x 3/4 x 1/16")

1

2

$10.00

Create/add to Wishlist

15

1022866

NLA - Screw, Socket Button Head (3/8-16 x 3/4")

1

2

N/A

Create/add to Wishlist

16

40363X000

Hex Nut (3/8"-16)

1

3

$10.00

Create/add to Wishlist

17

1022846

NLA - Bar, Link, Black

1

N/A

Create/add to Wishlist

18

1022877

NLA - Tube, Support and Drive Link, Chrome - Right

1

N/A

Create/add to Wishlist

18

1022878

NLA - Tube, Support and Drive Link, Chrome - Left

1

N/A

Create/add to Wishlist

19

1022854

NLA - Screw, Shoulder Slotted Head (1/2 x 1-1/8", 3/8-16)

1

N/A

Create/add to Wishlist

20

10261X000

Nut, Acorn (5/16-24)

1

$10.00

Create/add to Wishlist

21

04528X002

Bracket, Release, Black

1

$8.00

Create/add to Wishlist

22

1040831

Ring, Snap

1

$8.00

Create/add to Wishlist

23

47328X003

Bushing, Pivot (5/16 x 7/16 x 7/8")

1

2

$10.00

Create/add to Wishlist

24

42326X004

Bar, Ratchet - Right/Left

1

$8.00

Create/add to Wishlist

25

1037485

Spring, Release

1

$8.00

Create/add to Wishlist

26

1037125

Cam, Legrest

1

$8.00

Create/add to Wishlist

27

1013519

Washer, Nylon (5/16 x 11/16 x 1/16")

1

$10.00

Create/add to Wishlist

28

1024911

NLA - Decal, Smartleg

1

N/A

Create/add to Wishlist

29

1014807

Screw, Hex Head (5/16-24 x 3-1/4")

1

$10.00

Create/add to Wishlist

30

48823X008

Spring, Leaf

1

$9.00

Create/add to Wishlist

31

47328X003

Bushing, Pivot (5/16 x 7/16 x 7/8")

1

$10.00

Create/add to Wishlist

32

1025133

Spacer, Legrest Pad, Black

1

$10.00

Create/add to Wishlist

33

04526X019

Plate, Legrest Pad

1

$9.00

Create/add to Wishlist

34

60264X001

Locknut (5/16-24)

1

$8.00

Create/add to Wishlist

35

1025104

Bracket, Legrest, Chrome

1

$16.00

Create/add to Wishlist

36

11232X009

Bolt, Lug (5/16-24 x 1-3/8")

1

$10.00

Create/add to Wishlist

37

1022848

Tube, Slide, Articulating, Chrome - Right

1

$30.00

Create/add to Wishlist

37

1022849

Tube, Slide, Articulating, Chrome - Left

1

$31.00

Create/add to Wishlist

38

1027377

Washer (#20)

1

$10.00

Create/add to Wishlist

39

1107321

Nut, Low Cap (5/16"-24)

1

$10.00

Create/add to Wishlist

40

8881091764

Pad, Legrest, Vinyl - Right/Left

1

$48.00

B ,F

Create/add to Wishlist

41

1068649

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1
Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
Screw, Phillips Pan Head (#10-32 x 1")	1	2
Instruction Sheet, Legrest Pad Mtg.	1	1

Hardware, Legrest Pad

1

$11.00

E

Create/add to Wishlist

1114995

NLA - Legrest Support Assembly, Articulating, Hemi, Chrome - Right

1

N/A

C

Create/add to Wishlist

1114996

NLA - Legrest Support Assembly, Articulating, Hemi, Chrome - Left

1

N/A

C ,D

Note Code	Definition
A	Right release handle is used on the left side support and the left release handle is used on the right side support.
B	Specify upholstery color U67 black when ordering.
C	Not Shown
D	No longer available as a service part. There is no replacement.
E	Includes Screws and Instruction Sheet.
F	Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit (1068649) when ordering replacement Calf Pads.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

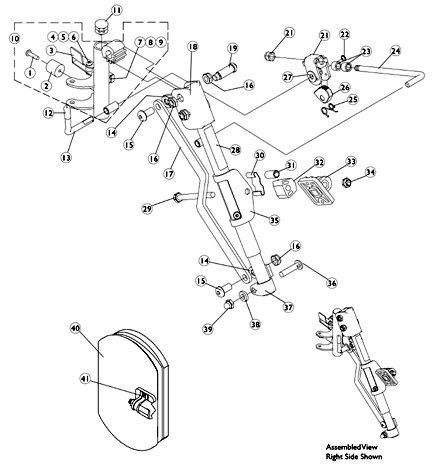

Front Riggings - Legrest Supports - Articulating - Hemi - PHAL4A (9/1/02-1/5/03)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist
