06. Disinfectant System Components

Print this page

Disinfectant System Components

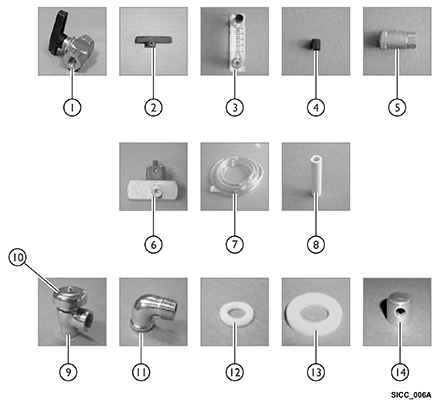

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	PAR1110C	Valve, Two Way Ball (Disinfectant on/off)	1	1	$72.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	PAR1110	Handle, Replacement	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	PAR1108	Metering Valve	1	1	$124.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	IHPAR1106	Metering Valve Replacement Knob	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	PAR5673	Check Valve (1/4" FPT)	1	1	$47.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	PAR1030	Injector Assembly (3/8" FPT)	1	1	$97.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	IHPAR1034	Check Valve and Suction Tube, Disinfectant	1	1	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	IHPAR1032	NLA - Weight, Ceramic	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	PAR7380AG	Back Flow Preventer - Conbraco (1/2")	1	1	$53.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	IHPAR7383C	Bonnet	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	IHPAR7384C	Kit, Repair	1	1	$24.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	PAR1136	Elbow, 90 Degrees - Chrome	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	PAR6160D	Washer, Nylon, Backflow Preventer and Chrome Elbow	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	IHPAR3617A	NLA - Washer, Disinfectant Burp Fitting	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	IHPAR3617	NLA - Burp Fitting, Disinfectant	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Replaces IHPAR1111C (No Longer Available) on all Tubs built after June 2009. Replacements for Tubs built prior to June 2009 must have rinse line capped when replacing fitting.
B	Not shown in picture.

Catalog Literature

Parts Books for ICC - Tub 3650
