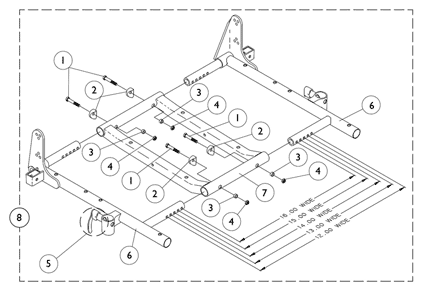

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1037610	Screw, Hex Head (1/4-20 x 1-5/8")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1026099	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1047449	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1025736	Locknut (1/4-20)	1	4	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	47471X074	Spring, Arm Lock	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1028594	Pin, Arm Lock, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1090768	Kit, Lock Handle w/Rivets (Pair)	2	1	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1070473	NLA - Frame Seat, Adult/Junior, Black - Right	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1070474	NLA - Frame Seat, Adult/Junior, Black - Left	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1070476	NLA - Frame, Seat, Adult/ Junior, Center, Black	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1070469	NLA - Frame Assembly Seat, Adult/Junior, Black (14-15" W x 16-17" D)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Note Code	Definition
A	Junior 12-16" Wide and 12-16" Deep
B	Includes seat frame and item 5 arm lock assembly
C	Includes items 1-7
