Crossbrace - Conventional Growable Seat Depth

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Seat Depth	8 - 11" W	12 - 15" W
8 - 10" Deep	1511958	N/A
10 - 12" Deep	1511959	N/A
11 - 13" Deep	N/A	1512008
12 - 14" Deep	1513260	N/A
13 - 15" Deep	N/A	1512009 MSRP: $412.00

Create/add to Wishlist

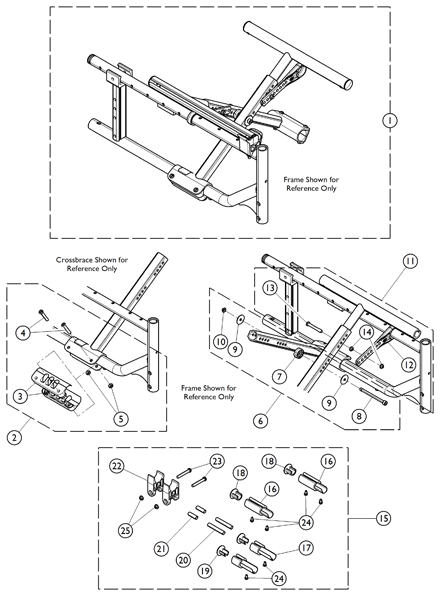

#1 Crossbrace Assembly - Growable Conventional Adjustable Seat Depth

N/A

Create/add to Wishlist

1173765

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Clamp, Saddle, Crossbar	1	2
3	Clamp, Saddle	1	2
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
3	Clamp, Saddle, Crossbar	1	1
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
5	NLA - Locknut (M6 x 1)	1	2
3	Clamp, Saddle, Crossbar	1	2
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Locknut (M6 x 1)	1	4
3	Clamp, Saddle	1	2
5	NLA - Locknut (M6 x 1)	1	4
6	NLA - Locknut (M6 x 1)	1	4
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Locknut (M6 x 1)	1	4

Kit, Saddle Clamp w/ Hardware (Pair)

$20.00

Create/add to Wishlist

1173777

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Washer, Plastic	1	2
14	NLA - Locknut (M6 x 1)	1	2
10	NLA - Locknut (M6 x 1)	1	2
9	Washer (6.6 x 22 x 2)	1	4
12	Bolt (M6 x 80mm)	1	2
7	Washer, Plastic	1	2
7	Bolt (M6 x 80mm)	1	1
8	Washer, Plastic	1	1
9	NLA - Locknut (M6 x 1)	1	1
10	Washer (6.6 x 22 x 2)	1	2
8	Bolt (M6 x 80mm)	1	2
13	Washer (6.6 x 22 x 2)	1	4

Kit, Crossbrace w/ Hardware (Pair)

$33.00

Create/add to Wishlist

1173776

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	NLA - Locknut (M6 x 1)	1	4
12	Link, Pivot, Crossbrace (12-15" W)	1	2
7	Link, Pivot, Crossbrace (12-15" W)	1	2
12	Link, Pivot, Crossbrace (12-15" W)	1	2
13	Screw (M6 x 45mm)	1	2
14	NLA - Locknut (M6 x 1)	1	4
13	Screw (M6 x 45mm)	1	2
14	NLA - Locknut (M6 x 1)	1	4
8	Screw (M6 x 45mm)	1	2

Kit, Pivot Link w/ Hardware (12 - 15" W)

$29.00

Create/add to Wishlist

1172274

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	Extension, Seat Rail (1")	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
20	Rod, Upholstery (2")	1	2
22	Guide, Seat	1	2
25	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
	Instruction Sheet, Seat Rail Extensions	1	1
14	Extension, Seat Rail (2")	1	2
17	Cap, Extension, Seat Rail (1")	1	2
18	Rod, Upholstery (2")	1	2
19	Rod, Upholstery (1")	1	2
23	NLA - Locknut (M6 x 1)	1	2
18	NLA - Plug Button	1	2
18	NLA - Plug Button	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
16	Extension, Seat Rail (2")	1	2
17	Extension, Seat Rail (1")	1	2
18	NLA - Plug Button	1	2
19	Cap, Extension, Seat Rail (1")	1	2
20	Rod, Upholstery (2")	1	2
21	Rod, Upholstery (1")	1	2
22	Guide, Seat	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
25	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
27	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
19	Extension, Seat Rail (2")	1	2
20	Extension, Seat Rail (1")	1	2
21	NLA - Plug Button	1	2
22	Cap, Extension, Seat Rail (1")	1	2
23	Rod, Upholstery (2")	1	2
24	Rod, Upholstery (1")	1	2
25	Guide, Seat	1	2
26	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
28	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
19	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
20	NLA - Locknut (M6 x 1)	1	2
11	Extension, Seat Rail (2")	1	2
12	Extension, Seat Rail (1")	1	2
13	NLA - Plug Button	1	2
14	Cap, Extension, Seat Rail (1")	1	2
15	Rod, Upholstery (2")	1	2
16	Rod, Upholstery (1")	1	2
17	Guide, Seat	1	2
18	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
16	Extension, Seat Rail (2")	1	2
17	Extension, Seat Rail (1")	1	2
18	NLA - Plug Button	1	2
19	Cap, Extension, Seat Rail (1")	1	2
20	Rod, Upholstery (2")	1	2
21	Rod, Upholstery (1")	1	2
22	Guide, Seat	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
25	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
21	Rod, Upholstery (1")	1	2
16	Extension, Seat Rail (2")	1	2
21	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
22	Guide, Seat	1	2
20	Rod, Upholstery (2")	1	2
21	Rod, Upholstery (1")	1	2
15	Extension, Seat Rail (1")	1	2
22	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
19	Cap, Extension, Seat Rail (1")	1	2
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
25	NLA - Locknut (M6 x 1)	1	2
20	Guide, Seat	1	2
17	Extension, Seat Rail (1")	1	2
16	NLA - Plug Button	1	2
16	Extension, Seat Rail (2")	1	2
19	Cap, Extension, Seat Rail (1")	1	2

Kit, Seat Rail Extensions (16 - 18" D)

$150.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 14.
B	Includes items 3 - 5.
C	Includes items 7 - 10.
D	Includes items 12 - 14.
E	Includes items 16 - 25.
