1

1114096

NLA - Kit, Fold Down Back Mounting Hardware

1

N/A

A

Create/add to Wishlist

2

1114084

NLA - Bracket, Support Back, Black -Right

1

N/A

Create/add to Wishlist

2

1114085

NLA - Bracket, Support Back, Black -Left

1

N/A

Create/add to Wishlist

3

1116005

NLA - Bracket, Latch, Black

1

2

N/A

Create/add to Wishlist

4

1039232

NLA - Cam, Adjustment

1

2

N/A

Create/add to Wishlist

5

40157X020

Spacer, Coved (1/4 x 1 x 9/16")

1

4

$7.20

Create/add to Wishlist

6

1040776

NLA - Spacer, Nylon (1/4 x 1 x 1/4")

1

4

N/A

Create/add to Wishlist

7

1114099

NLA - Screw, Hex Head (1/4-28 x 2")

1

8

$2.00

Create/add to Wishlist

8

1071496

NLA - Pin, Roll (3/16 x 3/4")

1

2

N/A

Create/add to Wishlist

9

1025728

Washer (1/4 x 1/2 x 1/32")

1

2

$11.00

Create/add to Wishlist

10

1114077

NLA - Latch, Torsion Spring - Right

1

N/A

Create/add to Wishlist

10

1114078

NLA - Latch, Torsion Spring - Left

1

N/A

Create/add to Wishlist

11

1026162

Spacer (1/4 x 3/8 x 11/32")

1

4

Create/add to Wishlist

12

1058636

NLA - Washer, Nylon (25/64 x 7/8 x 1/32")

1

2

N/A

Create/add to Wishlist

13

1026907

Washer (1/4 x 1/2 x 1/16")

1

14

$7.20

Create/add to Wishlist

14

1025765

Locknut (1/4-28)

1

10

$7.20

Create/add to Wishlist

15

1141633

Cord, Nylon (6-1/2 ft.)

1

$9.00

Create/add to Wishlist

16

1039233

NLA - Spacer, Back Stop (1/4 x 7/16 x 5/8")

1

2

$4.00

Create/add to Wishlist

17

1045495

NLA - Screw, Set Socket (1/4-20 x 1/4")

1

2

N/A

Create/add to Wishlist

18

See Chart

Added to Cart

Chair Width	8-11" High	10-14" High	12-16" High	14-18" High	16-20" High
12"	1071788- NLA	1071789- NLA	1071790- NLA	1071791- NLA	1071792- NLA
13"	1071793- NLA	1071794- NLA	1071795- NLA	1071796- NLA	1071797- NLA
14"	1024706- NLA	1026188- NLA	1042982- NLA	1026757- NLA	1026764- NLA
15"	1024707- NLA	1026189- NLA	1042986- NLA	1026758- NLA	1026765- NLA
16"	1024708- NLA	1026190- NLA	1042987- NLA	1026759- NLA	1026766- NLA
17"	1024709- NLA	1026191- NLA	1042988- NLA	1026760- NLA	1026767- NLA
18"	1024710- NLA	1026192- NLA	1042989- NLA	1026761- NLA	1026768- NLA
19"	1024711- NLA	1026193- NLA	1042990- NLA	1026762- NLA	1026769- NLA
20"	1024712- NLA	1026194- NLA	1042991 MSRP: $115.00	1026763- NLA	1026770- NLA
21"	1082654- NLA	1082952- NLA	1082953- NLA	1082954- NLA	1082955- NLA
22"	1082956- NLA	1082957- NLA	1082958- NLA	1082959- NLA	1082960- NLA

Create/add to Wishlist

#18 - One Piece Backrest Frame

N/A

Create/add to Wishlist

19

See Chart

Added to Cart

Back Height		8 - 11" High		10 - 14" High		12 - 16" High		14 - 18" High		15 - 19" High
Part Number		1042514- NLA		1042513- NLA		1043358 MSRP: $38.00		1042515- NLA		1052226- NLA

Create/add to Wishlist

#19 - Upright Tube

N/A

Create/add to Wishlist

20

See Chart

Added to Cart

Chair Width	Part Number	Chair Width	Part Number
12" Wide	1042508- NLA	18" W	1050080 MSRP: $209.00
13" Wide	1042509- NLA	19" W	1050077 MSRP: $209.00
14" Wide	1042510 MSRP: $201.00	20" W	1050074 MSRP: $209.00
15" Wide	1042511	21" W	1085292- NLA
16" Wide	1042512 MSRP: $191.00	22" W	1085293- NLA
17" Wide	1050083 MSRP: $209.00

Create/add to Wishlist

#20 - Backrest Crossmember

N/A

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

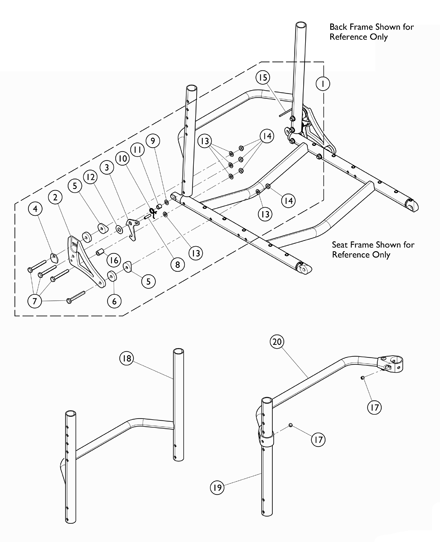

Backrests and Hardware - w/o Side Guards or Other Side Guards
