Bedend Assembly - Medium Post Headboard - Models IH297-P-5 & IH297-W-5

Print this page

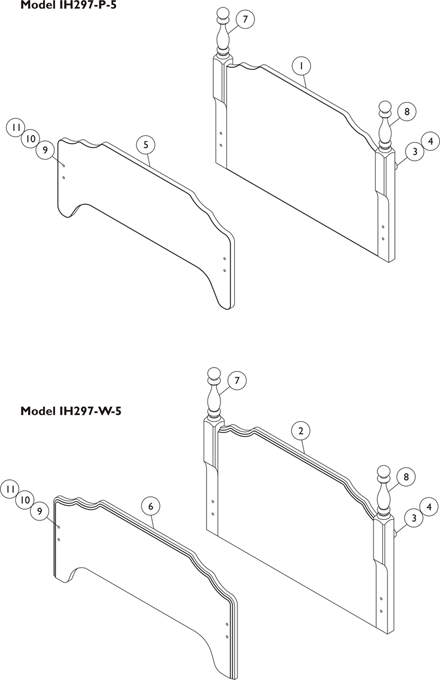

Bedend Assembly - Medium Post Headboard (Models IH297-P-5 and IH297-W-5)

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	A024957	Headboard Assembly	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	A024979	Headboard Assembly	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	IHB001637	Bumper, Recess, Grey	1	2		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	IHB004149	Screw, Phillips Pan Head (#8 x 5/8")	1	2		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	IHA022678	Footboard Assembly with Cut Out	1	0		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	A024953	Footboard Assembly without Cut Out	1	1		A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	IHA022721	Footboard Assembly with Cut Out	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	A024976	Footboard Assembly without Cut Out	1	1		C ,A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	IHA016539	Headboard Assembly, Medium Post - Right	1	1		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	IHA016538	Headboard Assembly, Medium Post - Left	1	1		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	IHB002194	T-Nut, Cap (20-1/4")	1	4		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	IHB007478	Washer, Plated (1/4")	1	8		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	IHB011312	Bolt, Hex Head (20-1/4 x 3/4")	1	4		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	IHB017097	Cam, Shallow	1	6		A ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	IHB014947	Bolt, Hex Head (20-1/4 x 1-1/2")	1	4		A ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown.
B	Use with Model IH297-P-5.
C	Use with Model IH297-W-5.
D	Use with Model IH297-P-5 and IH297-W-5.
