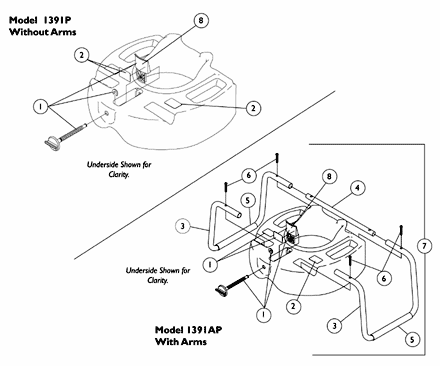

Raised Toilet Seat - Model 1391AP & 1391P
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1048672 | NLA - Pads, Non-Skid | 1 | 3 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1036153 | NLA - Tube, Arm, Raised Toilet Seat | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1036231 | NLA - Tube, Insert | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1036155 | NLA - Pad, Arm, Foam, Grey | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1008665 | NLA - Screw, Phillips Pan Head (1/4-20 x 1-1/4") | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1391KIT | NLA - Arm Assembly, Complete | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
8 | 1073914 | NLA - Adjustment Bracket Assembly, White | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Kit Includes (1) each Adjustment Bracket, Retaining Clip and Adjustment Knob. |
B | Includes Items 3-6. |
C | Includes Adjustment Bracket and Non-Skid Pad. |
