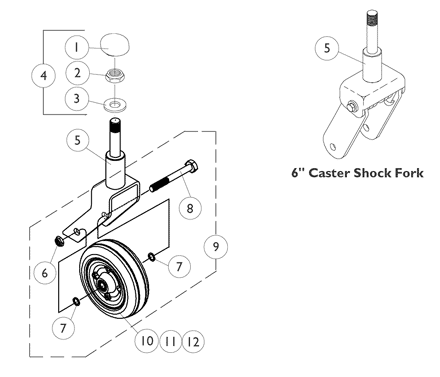

Casters & Forks (6" Assembly)

Print this page

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1101737	Cap, End, Tube, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1028550	Locknut (5/8-18)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1041444	Washer, Nylon (5/8 x 1-5/16 x 1/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1104451	Hardware, Caster Fork Mounting	1	1	$23.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	8881041458	Fork and Stem Assembly (6" Caster)	1	1	$121.00	C ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	8881056379	Fork, Shock, Color (6")	1	1	$324.00	C ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	7930331	NLA - Locknut (7/16-20")	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	7930329	Washer, Steel (15/32 x 5/8 x 3/64")	25	2	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1025726	Screw, Hex Head (7/16-20 x 3-1/4")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1042489	Hardware, Caster Axle	1	2	$29.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1058890	NLA - Hardware, Caster, Shock Fork (Pair)	2	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1072014	NLA - Wheel Assembly, Semi-Pneumatic, Urethane (6" x 2")	1	1	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1115179	Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2")	1	1	$79.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1122066	Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2") (Pair)	2	1	$118.00	F ,G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1175881	Wheel Assembly, Urethane, Deep Profile, Grey Tire/Silver Hub (6" x 2")	1	1	$77.00	H	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1180077	Wheel Assembly, Urethane, Deep Profile, Grey Tire/Silver Hub (6" x 2") (Pair)	2	1	$102.00	H	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1006049	Bearing (7/16")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1020592	Spacer, Bearing (7/16 x 5/8 x 1-3/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-3
B	Includes items 6-8 to accommodate 1 side.
C	Specify frame color when ordering. See page titled "Frame Finishes and Touch-Up Paints".
D	300 Lb. weight limit and under
E	Service part No Longer Available 8/15/03. Due to product improvement, order (pair) part number 1122066 dated after 8/14/03 so each side matches. The deep profile caster has 2 tread grooves w/ round corners instead of 4 tread grooves w/ square corners.
F	Service part 8/13/03-2/29/12.
G	Part number 1122066 is a pair number that can be used to replace part number 1072014 that was discontinued 8/15/03
H	After 2/29/12. Caster changed from Grey Tire/Black Hub to Grey Tire/Silver Hub.

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
