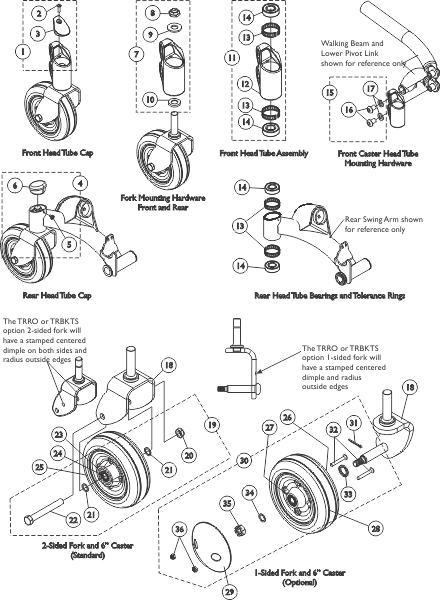

Caster & Forks - 6" Front & Rear
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 |
1142343
|
Kit, Cap with Screw, Front Head Tube - Left | 1 | 1 |
$11.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
4 |
1142338
|
Kit, Cap with Screw, Rear Head Tube - Right/Left | 1 | 1 |
$11.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
7 |
1110684
|
Kit, Fork Mounting Hardware | 1 | 1 |
$19.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
11 |
1142340
|
Kit, Front Head Tube Assembly - Right | 1 | 1 |
$150.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
11 |
1153859
|
Kit, Front Head Tube Assembly - Right | 1 | 1 |
$149.00 |
K |
Create/add to WishlistCreate/add to Wishlist |
11 |
1142341
|
Kit, Front Head Tube Assembly - Left | 1 | 1 |
$150.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
11 |
1153860
|
Kit, Front Head Tube Assembly - Left | 1 | 1 |
$149.00 |
K |
Create/add to WishlistCreate/add to Wishlist |
13 | 1110717 | Ring, Tolerance | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 40117X006 | Bearing (5/8") | 1 | 2 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
15 |
1145066
|
Kit, Front Head Tube Mounting Hardware | 1 | 1 |
$15.00 |
E |
Create/add to WishlistCreate/add to Wishlist |
18 | 1110683 | Fork and Stem, 2-Sided - Right/Left | 1 | 1 |
$100.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1141020 | Fork and Stem, 2-Sided, TRRO/TRBKTS - Right/Left | 1 | 1 |
$100.00 |
J |
Create/add to WishlistCreate/add to Wishlist |
18 | 1113123 | Fork and Stem, 1-Sided - Right | 1 | 1 |
$121.00 |
F ,L |
Create/add to WishlistCreate/add to Wishlist |
18 | 1113124 | Fork and Stem, 1-Sided - Left | 1 | 1 |
$121.00 |
F ,L |
Create/add to WishlistCreate/add to Wishlist |
18 | 1141005 | Fork and Stem, 1-Sided, TRRO/TRBKTS - Right | 1 | 1 |
$121.00 |
F ,I ,L |
Create/add to WishlistCreate/add to Wishlist |
18 | 1141006 | Fork and Stem, 1-Sided, TRRO/TRBKTS - Left | 1 | 1 |
$121.00 |
F ,I ,L |
Create/add to WishlistCreate/add to Wishlist |
19 | 1110708 | Kit, Caster Mounting Hardware | 1 | 1 |
$19.00 |
G |
Create/add to WishlistCreate/add to Wishlist |
20 | 1025734 | Locknut (7/16-20) | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 1025724 | Washer, Steel (15/32 x 5/8 x 3/64") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
22 | 1025726 | Screw, Hex Head (7/16-20 x 3-1/4") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
23 | 1006049 | Bearing (7/16") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
24 | 1020592 | Spacer, Bearing (7/16 x 5/8 x 1-3/4") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
25 | 1115179 | Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2") | 1 | 1 |
$79.00 |
M ,P |
Create/add to WishlistCreate/add to Wishlist |
25 | 1122066 | Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2") (Pair) | 2 | 1 |
$118.00 |
M ,P |
Create/add to WishlistCreate/add to Wishlist |
25 | 1175881 | Wheel Assembly, Urethane, Deep Profile, Grey Tire/Silver Hub (6" x 2") | 1 | 1 |
$77.00 |
O ,Q |
Create/add to WishlistCreate/add to Wishlist |
25 | 1180077 | Wheel Assembly, Urethane, Deep Profile, Grey Tire/Silver Hub (6" x 2") (Pair) | 2 | 1 |
$102.00 |
O ,Q |
Create/add to WishlistCreate/add to Wishlist |
26 | 40117X006 | Bearing (5/8") | 1 | 1 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
27 | 1006049 | Bearing (7/16") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
28 | 1110715 | Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2") | 1 | 1 |
$91.00 |
N |
Create/add to WishlistCreate/add to Wishlist |
28 | 1122067 | Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2") (Pair) | 2 | 1 |
$107.00 |
N |
Create/add to WishlistCreate/add to Wishlist |
29 | 1105854 | Cap, Hub, Black | 1 | 1 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
30 | 1108561 | Hardware, Caster | 1 | 1 |
$31.00 |
H |
Create/add to WishlistCreate/add to Wishlist |
31 | 1105852 | Pin, Cotter (7/64 x 1") | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
32 | 1115246 | Screw, Phillips Flat Head (M6 x 1 x 45mm) | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
33 | 1108005 | Spacer, Steel (5/8 x 7/8 x 1/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
34 | 1025724 | Washer, Steel (15/32 x 5/8 x 3/64") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
35 | 1107168 | NLA - Nut, Hex Slotted (7/16-20) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
36 | 1107698 | Locknut (M6 x 1) | 1 | 2 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 2 and 3 |
B | Includes items 5 and 6 |
C | Includes items 8-10 |
D | Includes items 12-14 and 16. Used for TDX SP only. The Front Head Tube contains two plastic flange bearings (not shown) that are press fitted into place and not sold separately |
E | Includes items 16-17 |
F | When 1-sided forks are used, they are assembled in the front and rear of the power chair |
G | Includes items 20-22 |
H | Includes items 31-36 |
I | The TRRO or TRBKTS option 1-sided fork will have a stamped centered dimple and radius outside edges |
J | The TRRO or TRBKTS option 2-sided fork will have stamped centered dimple on both sides and radius outside edges |
K | Includes items 12-14 and 16. Used for TDX SR only. The Front Head Tube contains two metal flange bearings (not shown) that are press fitted into place and not sold separately |
L | One-Sided Forks are standard with GB Motors and optional for 4-Pole motors. |
M | Includes the Wheel Assembly plus items 23 and 24 also. Used only with the two sided forks. Grey Tire/Black Hub used Before 6/4/12. |
N | Includes the Wheel Assembly plus items 26 and 27 also. Used only with the one sided forks. |
O | After 6/3/12 Caster changed from Grey Tire/Black Hub to Grey Tire/Silver Hub. Includes the Wheel Assembly plus items 23 and 24 also. Used only with the two sided forks. |
P | Used for all 301-400 Lb. user weight models Before 4/11/12 and 300 Lb. user weight models Before 3/1/12. |
Q | Used for all 301-400 Lb. user weight models After 4/10/12 and 300 Lb. user weight models After 2/29/12. |
