04. Footrest Assembly

Print this page

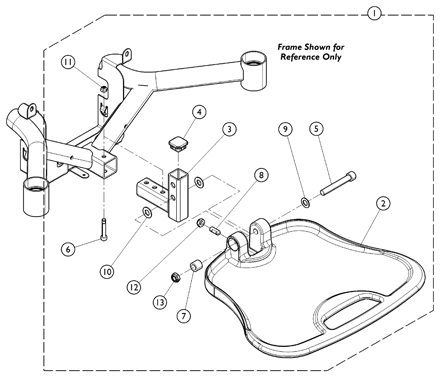

Footrest Assembly

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1179363

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Footplate	1	1
3	Footrest Support	1	1
4	Plug Button, Black (1" Square)	1	1
5	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
6	NLA - Screw, Socket w/ Patch (M6 x 1 x 35mm)	1	1
7	Bushing (3/8 x 5/8 x 1/2")	1	1
8	Screw, Set Socket, Flat Point (5/16-18 x 3/4")	1	1
9	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
10	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2
11	Nut, Lock (M6 x 1mm)	1	1
12	Locknut (5/16-18)	1	1
13	Locknut, Low Profile (3/8-16)	1	1
	Instruction Sheet, Footrest Assembly	1	1

NLA - Kit, Footrest Assembly

1

1

N/A

A

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 14.

Catalog Literature

Parts Books for Pronto® Air Personal Transporter
