11. Soprano Rollator

Print this page

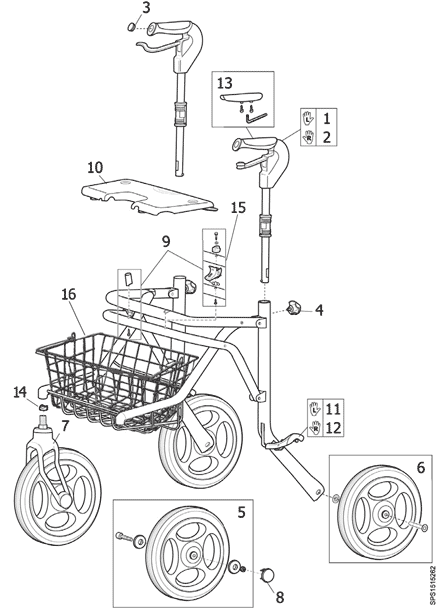

Soprano Rollator

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	12702-R	Brake Handle with Hardware, Medium, Large - Right	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	12702-L	Brake Handle with Hardware, Medium, Large - Left	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	70073	Plug Button, Handle	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1452462	Package, Adjustment Knob w/ Washer (10 pcs)	10	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	12717	Wheel Assembly with Hardware SLIV - Front (260mm)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1510546	Wheel Assembly with Hardware SLIV - Rear (260mm)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	12719	Wheel Assembly with Fork (260mm) - Front	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1452463	Package, Cover (20 pcs)	20	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1452464	Kit, Distance and Folding Lock (5 pcs)	5	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	12721	Kit, Seat Assembly	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	12705-R	Brake Stopper with Attachments - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	12705-L	Brake Stopper with Attachments - Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1452460	Package, Grip Surface with Screw and Key (10 pcs)	10	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	12706	Grip Surface with Screw and Key	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	70172	Washer, Steel - Front Fork	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	12707	Kit, Folding Lock	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	12541D	Basket	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes Brake Handle, Adjustment Knob and Washer.
B	Includes part number 12707.

Catalog Literature

Parts Books for Dolomite Rollators - Canada
