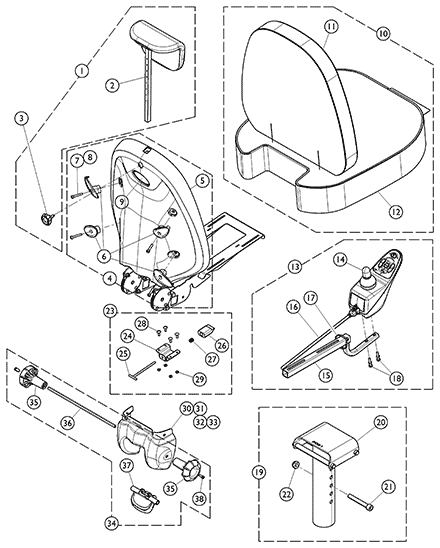

08. Seating and SPJ+ Joystick Components

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1178725

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Headrest Assembly	1	1

NLA - Kit, Headrest

N/A

Create/add to Wishlist

1179376

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Knob w/ Threaded Stud (M8 x 1.25 x 20mm)	3	1

NLA - Package, Adjustment Knobs

N/A

Create/add to Wishlist

1179380

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Shell, Outer Seat Back	1	1
6	Hook, Back Accessories	1	4
7	Screw, Socket Head Cap (M6 x 1 x 35mm)	1	4
8	Locknut (M6 x 1mm)	1	4
9	Decal, Invacare Medallion, Reflective - Large	1	1

NLA - Kit, Back Cover w/ Hardware

N/A

Create/add to Wishlist

1179399

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Hook, Back Accessories	1	4
7	Screw, Socket Head Cap (M6 x 1 x 35mm)	1	4
8	Locknut (M6 x 1mm)	1	4
9	Decal, Invacare Medallion, Reflective - Large	1	1
	Instruction Manual, Joint Cap Shell	1	1

NLA - Kit, Back Accessory Hooks w/o Shell

Create/add to Wishlist

1179397

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Back Assembly w/ Upholstery	1	1
12	Seat Cushion Assembly (18")	1	1

NLA - Kit, Seat Cushion (18")

Create/add to Wishlist

1179398

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Back Assembly w/ Upholstery	1	1
12	Seat Cushion Assembly (20")	1	1

NLA - Kit, Seat Cushion (20")

Create/add to Wishlist

1179025

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Joystick, SPJ+	1	1
15	Joystick Mounting Arm	1	1
16	Cable, Joystick SPJ+	1	1
17	Tie Wrap (5-5/8" L)	1	1
18	Screw, Phillips Pan Head (M5 x 0.8 x 25mm)	1	2
	Instruction Manual, Joystick	1	1

NLA - Kit, Joystick w/ Mounting Hardware

N/A

Create/add to Wishlist

1179368

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
20	Upper Seat Post Assembly	1	1
21	Screw, Socket Head Cap (M10 x 1.5 x 70mm)	1	1
22	NLA - Locknut (M10 x 1.5)	1	1

NLA - Kit, Seat Post w/ Hardware

N/A

Create/add to Wishlist

1179379

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
24	Bracket, Seat Latch	1	1
25	Pull, Latch	1	1
26	Pawl, Latch	1	1
27	Spring, Compression (12 x 40mm)	1	1
28	Screw, Round Head Square Neck (M6 x 1 x 16mm)	1	4
29	Locknut (M6 x 1mm)	1	4

NLA - Kit, Seat Latch Mechanism

Create/add to Wishlist

1179381

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
31	Shell, Joint Cap	1	1
32	Screw, Flat Head Socket (M4 x 0.7 x 12mm)	1	2
33	Locknut (M4)	1	2
	Instruction Manual, Joint Cap Shell	1	1

NLA - Kit, Joint Cap Shell w/ Hardware

Create/add to Wishlist

1179378

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
35	Knob, Angle Adjustment	1	2
36	Rod, Angle Adjustment	1	1
37	Handle, Seat Release	1	1
38	Screw, Socket Button Head Cap (M6 x 1 x 16mm)	1	2

NLA - Kit, Repair Mechanism Angle

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Kit includes items 2 and 3.
B	Kit includes items 5 - 9.
C	Kit includes items 6 - 9 and Instruction Sheet.
D	Kit includes items 11 and 12.
E	Kit includes items 14 - 18 and Instruction Sheet.
F	Kit includes items 20 - 22 and Instruction Sheet.
G	Kit includes items 24 - 29.
H	Kit includes items 31 - 33 and Instruction Sheet.
I	Kit includes items 35 - 38.

Catalog Literature

Parts Books for Pronto® Air Personal Transporter
