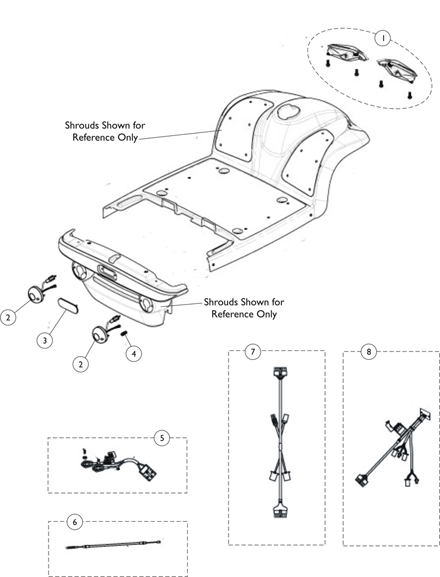

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1173794	Headlights, Front w/ Hardware (Pair)	2	1	$273.00	B ,A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1164845	Headlights, Front w/ Hardware (Pair)	2	1	$210.00	C ,A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1164838	Signal, Rear Turn (Pair)	2	1	$128.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1505528	Stoplight, Rear	1	1	$86.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1164839	Package, Rear Light Bulb	10	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1164844	Harness, Battery	1	1	$157.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1505295	Cable	1	1	$18.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1505402	Harness, Wire, Front	1	1	$192.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1505516	Harness, Wire, Rear	1	1	$115.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1148828	Controller R-Series (DR-90) w/ Hardware	1	1	$477.00	D ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1553404	Controller, Rhino (90A)	1	1		E ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1144798	Cable, Charger	1	1	$33.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1148830	Charger, Off-Board, 24 DC (5 AMP)	1	1	$257.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1154157	Programmer, Hand Held (DX-HHP) for DR-50 Controller	1	1	$995.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes (4) Screws.
B	Used on Three Wheel Scooters.
C	Used on Four Wheel Scooters.
D	For Scooters manufactured prior to June 2011.
E	For Scooters manufactured after June 2011.
F	Not shown in illustration.

Catalog Literature

Parts Books for Leo Scooter - Canada Service Parts Three and Four Wheel Scooter
