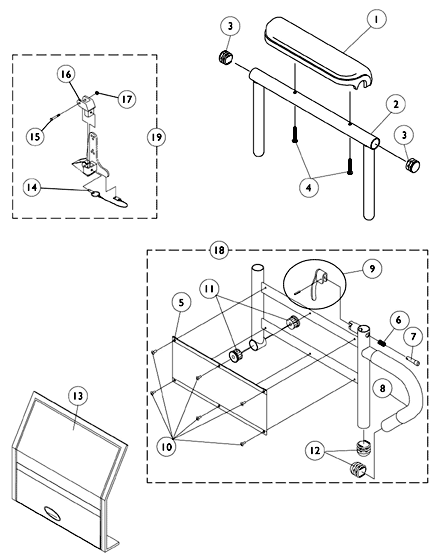

Arms - Adjustable Height
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1110818 | Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W) (Pair) | 2 | 1 |
$122.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1 | 1117327 | Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W) | 1 | 1 |
$47.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
1 | 1110817 | Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W) (Pair) | 2 | 1 |
$122.00 |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 1071253 | Arm Tube Assembly w/ Plug Buttons, Full Length, Black - Right/Left | 1 | 1 |
$53.00 |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 1070859 | Arm Tube Assembly w/ Plug Buttons, Desk Length, Black - Right/Left | 1 | 1 |
$53.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1027095 | Plug Button, Black (7/8") | 1 | 2 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1055949 | Package, Screw, Phillips Pan Head (#10-32 x 1-3/8") | 2 | 1 |
$13.00 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1094270 | NLA - Package, Screw, Phillips Pan Head (#10-32 x 1-1/4") | 2 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1064130 | NLA - Guard, Clothing | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 47471X074 | Spring, Arm Lock | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1028594 | Pin, Arm Lock, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1032244 | Grip, Foam Hand (9" L) | 1 | 1 |
$2.50 |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1090768 | Kit, Lock Handle w/Rivets (Pair) | 2 | 1 |
$16.00 |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1028645 | Rivet | 1 | 6 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1065936 | Plug, Pivot | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1067734 | Plug Button, Black (5/8") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1035065 | Cover, Clothing Guard w/ Pocket, FXDESK & ADJFULL/ADJDESK | 1 | 1 |
$98.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1068039 | Pin, Pull | 1 | 1 |
$12.00 |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1019590 | Screw, Socket Button Head (1/4-20 x 1-5/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1068025 | Clevis, Pivot | 1 | 1 |
$16.00 |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 7930323 | NLA - Package, Locknut (1/4-20) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1068416 | Arm Base Assembly, Black - Right (16-19" D) | 1 | 1 |
$94.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1068417 | Arm Base Assembly, Black - Left (16-19" D) | 1 | 1 |
$94.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1068418 | Arm Base Assembly, Black - Right (20" and Deeper) | 1 | 1 |
$94.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1068419 | Arm Base Assembly, Black - Left (20" and Deeper) | 1 | 1 |
$94.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1067761 | Arm Base Assembly, 1" Lower, Black - Right (16-19" D) | 1 | 1 |
$94.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1067762 | Arm Base Assembly, 1" Lower, Black - Left (16-19" D) | 1 | 1 |
$94.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1067755 | NLA - Arm Base Assembly, 1" Lower, Black - Right (20" and Deeper) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1067756 | NLA - Arm Base Assembly, 1" Lower, Black - Left (20" and Deeper) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 1068488 | Kit, Swingaway Armrest Mounting Hardware | 1 | 1 |
$31.00 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs with screws for chairs manufactured before 1/3/02. |
