Upholstery - Back & Hardware - 9000SL - XT - XDT

Print this page

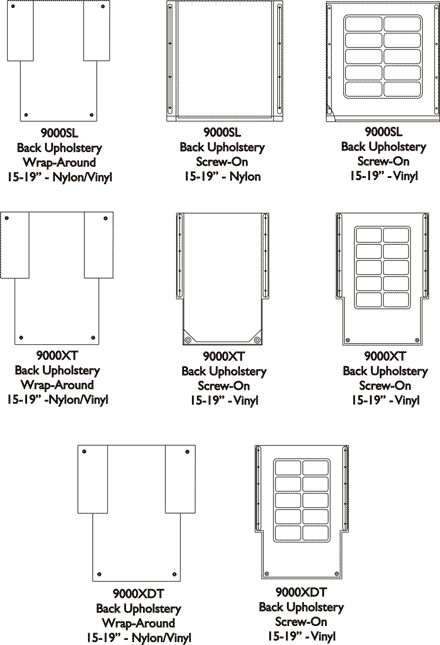

Back Upholstery without Hardware - 9000SL / 9000XT / 9000XDT

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Chair Width	15" Back Height	16" Back Height	17" Back Height	18" Back Height	19" Back Height
16" W	Note-A 8881057251	Note-A 8881057252- NLA	Note-A 8881057253- NLA	Note-A 8881057254- NLA	Note-A 8881057255- NLA
18" W	Note-A 8881057256- NLA	Note-A 8881057257- NLA	Note-A 8881057258- NLA	Note-A 8881057259- NLA	Note-A 8881057260- NLA
20" W	N/A	N/A	N/A	Note-A 8881066271- NLA	Note-A 8881066272- NLA

Create/add to Wishlist

See chart-note

9000SL Nylon Screw-On Back Upholstery - Before 7/12/99

N/A

See Chart

Added to Cart

Chair Width	Back Height 15-19" - Nylon	Back Height 15-19" - Vinyl
16" W	Note-A 1130878 MSRP: $56.00	Note-B 8881130886 MSRP: $75.00
18' W	Note-A 8881130880 MSRP: $62.00	Note-B 8881130888 MSRP: $75.00
20" W	Note-A 1130882 MSRP: $51.00	Note-B 8881130890 MSRP: $75.00

Create/add to Wishlist

See chart-note

9000SL Wrap-Around Upholstery

N/A

See Chart

Added to Cart

Part Number		Description		Quantity
Note-A 1041541 MSRP: $15.00		Screws w/washers		1 package of 12

Create/add to Wishlist

See chart-note

Hardware for Back Upholstery - 9000XDT

N/A

See Chart

Added to Cart

Part Number		Description		Quantity
Note-A 1041541 MSRP: $15.00		Screws w/ Washers		1 package of 12
Note-B 1018239 MSRP: $10.00		Tie Wrap		2

Create/add to Wishlist

See chart-note

Hardware for Back Upholstery- 9000XT

N/A

See Chart

Added to Cart

Chair Width	Back Height 15 - 17"	Back Height 17 - 19"
16" W	8881127500 MSRP: $54.00	8881127501 MSRP: $71.00
18" W	8881127502 MSRP: $50.00	8881127503 MSRP: $71.00
20" W	8881127504 MSRP: $59.00	8881127505 MSRP: $71.00

Create/add to Wishlist

9000SL Vinyl Screw-On Back Upholstery - Vinyl Height After 7/11/99

N/A

See Chart

Added to Cart

Part Number		Description		Quantity
Note-A 1041541 MSRP: $15.00		Screws w/ Washers		1 package of 12
Note-B 1018239 MSRP: $10.00		Tie Wrap		2

Create/add to Wishlist

See chart-note

Hardware for Back Upholstery - 9000SL

N/A

See Chart

Added to Cart

Chair Width	Nylon Wrap-Around Upholstery 15 - 19" Back Height	Vinyl Wrap-Around Upholstery 15 - 19" Back Height	Vinyl Screw-On Upholstery 15 - 19" Back Height
14" W	Note-A 1130876 MSRP: $75.00	Note-B 8881130884 MSRP: $108.00	Note-B 8881130892
15" W	Note-A 1130877 MSRP: $108.00	Note-B 8881130885	Note-B 8881130893
16" W	Note-A 1130878 MSRP: $56.00	Note-B 8881130886 MSRP: $75.00	Note-B 8881130894 MSRP: $75.00
17" W	Note-A 1130879 MSRP: $71.00	Note-B 8881130887 MSRP: $75.00	Note-B 8881130895
18" W	Note-A 8881130880 MSRP: $62.00	Note-B 8881130888 MSRP: $75.00	Note-B 8881130896 MSRP: $75.00
19" W	Note-A 1130881 MSRP: $75.00	Note-B 8881130889 MSRP: $75.00	Note-B 8881130897
20" W	Note-A 1130882 MSRP: $51.00	Note-B 8881130890 MSRP: $75.00	Note-B 8881130898 MSRP: $75.00
22" W	Note-A 1130883 MSRP: $75.00	Note-B 8881130891 MSRP: $75.00	Note-B 8881130899 MSRP: $75.00

Create/add to Wishlist

See chart-note

9000XT & 9000XDT Back Upholstery

N/A

See Chart

Added to Cart

Chair Width	Back Height 15 - 17"	Back Height 17 - 19"
16" W	1127480 MSRP: $39.00	1127481 MSRP: $71.00
18" W	1127482 MSRP: $49.00	1127483 MSRP: $59.00
20" W	1127484 MSRP: $71.00	1127485 MSRP: $71.00

Create/add to Wishlist

9000SL Nylon Screw-On Back Upholstery - Nylon Height After 7/11/99

N/A

Catalog Literature

Parts Books for 9000SL 9000XT 9000XDT 9000XT Recliner

Upholstery - Back & Hardware - 9000SL - XT - XDT

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Catalog Literature

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Upholstery, Back, Nylon (16" W x 14 - 18" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	2

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	2
Upholstery, Back, Wrap-Around (16" W x 15"-19" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	2
NLA - Upholstery, Back, Nylon (18" W x 14 - 18" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	2
Upholstery, Back, Wrap-Around (18" W x 15"-19" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	2
Upholstery, Back, Nylon (20" W x 14 - 18" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	2
Upholstery, Back, Wrap-Around (20" W x 15"-19" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Upholstery, Back, Vinyl (16" W x 16" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	12	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	12	1
Upholstery, Back, Vinyl (16" W x 18" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Upholstery, Back, Vinyl (18" W x 16" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	12	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	12	1
Upholstery, Back, Vinyl (18" W x 18" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Upholstery, Back, Vinyl (20" W x 16" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	12	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	12	1
Upholstery, Back, Vinyl (20" W x 18" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Upholstery, Back, Nylon (14" W x 15"-19" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	2

Part/Kit Description	Qty/Pkg	Qty/Asbly
Upholstery, Back, Vinyl (14" W x 15 - 19" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Upholstery, Back, Vinyl (14" W x 14 - 18" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10

Part/Kit Description	Qty/Pkg	Qty/Asbly
Upholstery, Back, Nylon (15" W x 14 - 18" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	2
Washer, Steel (13/64 x 1 x 3/64")	1	2

Part/Kit Description	Qty/Pkg	Qty/Asbly
Upholstery, Back, Vinyl (15" W x 14 - 20" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	2

Part/Kit Description	Qty/Pkg	Qty/Asbly
Upholstery, Back, Vinyl (15" W x 14"-18" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Back, Screw-On (16" W x 15"-19" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	2
Upholstery, Back, Nylon (17" W x 15 - 19" H)	1	1
Washer, Steel (13/64 x 1 x 3/64")	1	2
