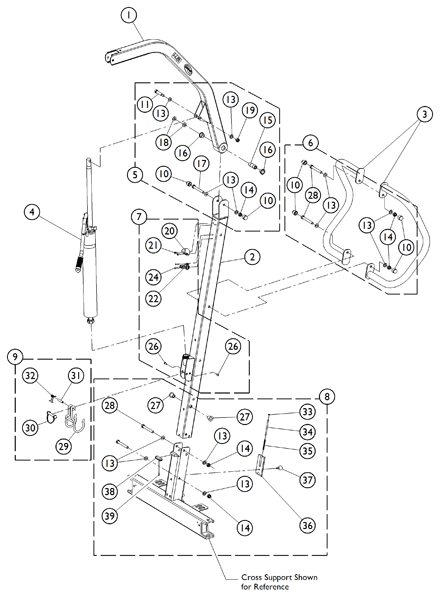

04. ILIFTHM - Hydraulic Lift - Mast / Boom Assembly
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1156241 | NLA - Mast Assembly, Hydraulic | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1156267 | NLA - Push Handle | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1175231 | NLA - Pump, Hydraulic | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 |
1177610
|
NLA - Kit, Boom Mounting Hardware | 1 | 1 | A ,C ,D ,E |
Create/add to WishlistCreate/add to Wishlist |
|
6 |
1177611
|
Kit, Push Handle Mounting Hardware | 1 | 1 |
$29.00 |
F |
Create/add to WishlistCreate/add to Wishlist |
7 |
1177612
|
NLA - Kit, Actuator Hardware, Mast | 1 | 1 | B |
Create/add to WishlistCreate/add to Wishlist |
|
8 |
1177614
|
Kit, Mast Connector Hardware | 1 | 1 |
$91.00 |
G |
Create/add to WishlistCreate/add to Wishlist |
9 |
1177615
|
Kit, Folding Hook | 1 | 1 |
$31.00 |
H |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 10 - 19 and 23. Items 12 and 23 are not used on this Application and are not shown in the illustration. |
B | Includes items 20 - 22 and 24 - 26. Item 25 is not used on this Application and is not shown in the illustration. |
C | Hydraulic Lift requires only (2) of Item 10. |
D | Hydraulic Lift requires only (2) of Item 14. |
E | Hydraulic Lift requires only (2) of Item 17. |
F | Includes items 10, 13, 14, and 28. |
G | Includes items 13, 14, 27, 28, and 33 - 39. |
H | Includes items 29 - 32. |
