1 |
1169695
| Item |
Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
4 |
Plate, Adjustable Angle, Inner - Left |
1 |
1 |
|
8 |
Backrest, Excenter |
1 |
2 |
|
9 |
Screw, Socket Head Cap (M6 x 1 x 30) |
1 |
2 |
|
3 |
Insert, Back Cane, Adjustable Height (14 - 18" H) |
1 |
2 |
|
7 |
Support, Seat Tube, Rear |
1 |
2 |
|
14 |
NLA - Locknut (M6 x 1) |
1 |
8 |
|
4 |
Plate, Adjustable Angle, Inner - Right |
1 |
1 |
|
5 |
Plate, Adjustable Angle, Outer - Right |
1 |
1 |
|
6 |
Spacer, Coved (1/4 x 1 x 13/32") |
1 |
8 |
|
11 |
NLA - Screw, Socket Button Head (M6 x 40mm) |
1 |
2 |
|
|
NLA - Screw, Socket Button Head (M6 x 40mm) |
1 |
2 |
|
|
Screw, Socket Button Head (M6 x 53mm) |
1 |
2 |
|
|
Washer (1/4 x 9/16 x 1/16") |
1 |
2 |
|
|
NLA - Locknut (M6 x 1) |
1 |
8 |
|
|
Back Cane, Adjustable Height, 8 Degree (15 - 19" H) |
1 |
2 |
|
|
Insert, Back Cane, Adjustable Height (14 - 18" H) |
1 |
2 |
|
|
Plate, Adjustable Angle, Inner - Right |
1 |
1 |
|
|
Plate, Adjustable Angle, Inner - Left |
1 |
1 |
|
|
Plate, Adjustable Angle, Outer - Right |
1 |
1 |
|
|
Plate, Adjustable Angle, Outer - Left |
1 |
1 |
|
|
Spacer, Coved (1/4 x 1 x 13/32") |
1 |
8 |
|
|
Support, Seat Tube, Rear |
1 |
2 |
|
|
Backrest, Excenter |
1 |
2 |
|
|
Screw, Socket Head Cap (M6 x 1 x 30) |
1 |
2 |
|
|
NLA - Screw, Socket Head Cap (M6 x 1 x 40mm) |
1 |
4 |
|
12 |
Screw, Socket Button Head (M6 x 53mm) |
1 |
2 |
|
2 |
Back Cane, Adjustable Height, 8 Degree (15 - 19" H) |
1 |
2 |
|
5 |
Plate, Adjustable Angle, Outer - Left |
1 |
1 |
|
10 |
NLA - Screw, Socket Head Cap (M6 x 1 x 40mm) |
1 |
4 |
|
13 |
Washer (1/4 x 9/16 x 1/16") |
1 |
2 |
|

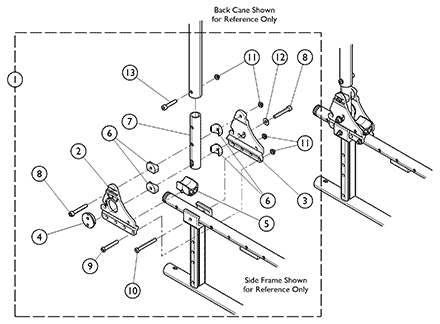

Kit, Adjustable Angle Back Canes w/ Hardware, 8 Degree (15 - 19") (Pair) |
1 |
1 |
$349.00
|
