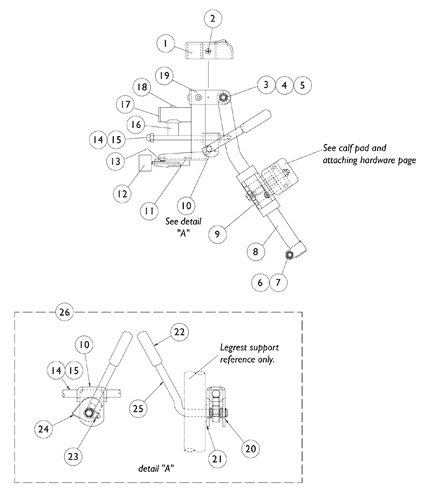

Front Riggings - Legrests Supports - AT5544
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1028529 | Screw, Phillips Pan Head (#8-32 x 3/8") | 1 | 2 |
Create/add to WishlistCreate/add to Wishlist |
||
3 | 40363X000 | Hex Nut (3/8"-16) | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1058636 | NLA - Washer, Nylon (25/64 x 7/8 x 1/32") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 11919X000 | NLA - Screw, Slotted Truss Head (3/8-16 x 1-1/2") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 7930330 | NLA - Locknut (5/16-24) | 1 | 3 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1026030 | Bolt, Lug (5/16-24 x 1-3/8") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1043556 | NLA - Tube, Elevating Adjustable Support, Black - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1043557 | NLA - Tube, Elevating Adjustable Support, Black - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 8881048851 | Tube, Elevating Adjustable Support, Color - Right | 1 | 1 | A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 8881048852 | Tube, Elevating Adjustable Support, Color - Left | 1 | 1 |
$37.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
9 | 1032266 | Bracket, Legrest Pad Mounting, Black | 1 | 1 |
$19.00 |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 04528X002 | Bracket, Release, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1025451 | Screw, Slotted Hex Washer Head (#10-32 x 5/8") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1025454 | Housing, Latch - Right | 1 | 1 |
$19.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1025455 | Housing, Latch - Left | 1 | 1 |
$19.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 7930314 | Package, Screw, Slotted Hex Washer Head (#10-32 x 1/2") | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
14 | 42326X001 | Bar, Ratchet | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 7930336 | NLA - Nut, Acorn (5/16-24) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1017148 | Pivot, Footrest | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 1029501 | Plug Button, Black (1") | 1 | 1 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 7930301 | NLA - Package, Button Head Cap Screw (1/4-20 x 1-3/4") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 8881045289 | Bracket, Legrest Support, Color - Right | 1 | 1 |
$135.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
19 | 8881045290 | Bracket, Legrest Support, Color - Left | 1 | 1 |
$135.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
20 | 1040831 | Ring, Snap | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 7930310 | NLA - Washer, Nylon (5/16 x 11/16 x 1/16") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
22 | 1040060 | Tip, Plastic, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
23 | 1037485 | Spring, Release | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
24 | 1037125 | Cam, Legrest | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
25 | 1037126 | Handle, Release | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
26 | 1096974 | Kit, Elevating Legrest Ratchet Hardware (Pair) | 2 | 1 |
$59.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1096943 | NLA - Instruction Sheet, Ratchet Kit | 1 | 1 | N/A | B ,C |
Create/add to WishlistCreate/add to Wishlist |
|
8881045291 | Legrest Support Assembly, Sector, Color - Right | 1 | 1 |
$263.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
|
8881045292 | Legrest Support Assembly, Sector, Color - Left | 1 | 1 |
$263.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Specify color when ordering. |
B | Not Shown |
C | Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy. |
